The idea of this mod is simply a way of achieving better braking on a budget. Also my discs and pads were looking tired so now was a good time to do the conversion.
This mod is cheap in the scheme of things, coming in at under £200. I wanted to do this conversion but found no write ups and the one i did find on the vr6oc was full of red x's for pictures and some parts i thought were unclear. After doing the conversion i would say the hardest part is actually sourcing all the parts and making your spacer.
***TAKE NOTE*** - brakes are the most important safety feature of your car, if you are not confident taking them apart please DO NOT attempt this conversion, leave it to a professional.
Parts needed:
-312mm discs from an audi tt / skoda octavia vRS and some mk4s (TT part no 8N0615311A)
-caliper carriers (Audi TT caliper part no 8N0615123) (audi TT carrier part no (1)Left 8N0615124 (2)Right 8N0615125 )
(note - later spec vr6 guys with 288mm brakes can use the original caliper. early obd1/rado guys will need the caliper from either obd2 vr6 or the caliper from your donor tt/octavia vRS/mk4 - early caliper guys (obd1) need to also buy banjo type brake hoses)
-pads to suit 312mm discs (again obd2 guys can use your old pads but id reccomend buying new ones. )
-6mm plate metal (this will become clear later)
-m12 high tensile bolts at least 40mm long (your old bolts are no good)
-16" wheels at least. 15s WILL NOT WORK

here is my spacer i made. you will need to make two of these. It is VERY important you ensure the 12mm holes you drill match EXACTLY up with the 12mm holes in the carrier. This will save you trouble when it comes to putting them on the car. dont worry about it being neat, it cant be seen when its on the car.

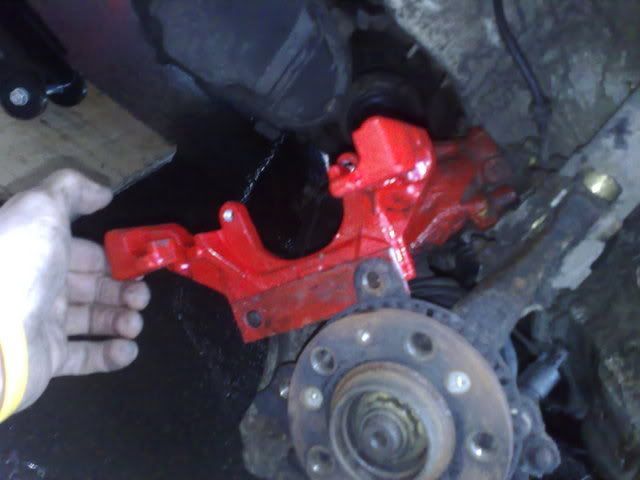

while i had the carriers off the car i also painted them to match my calipers.

now i was ready to install my new parts

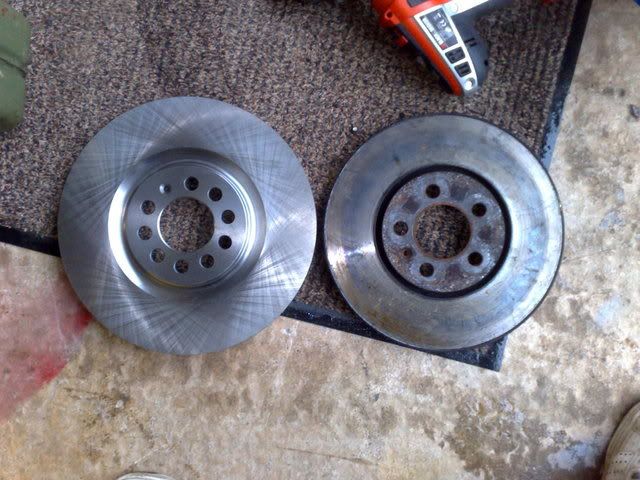

just for comparrison 288 vs 312mm

this is the reason for your 6mm plate spacer. notice the 312mm disc has a more protruding face out of the friction area. Your spacer will make your pads and caliper line up properly with the disc.

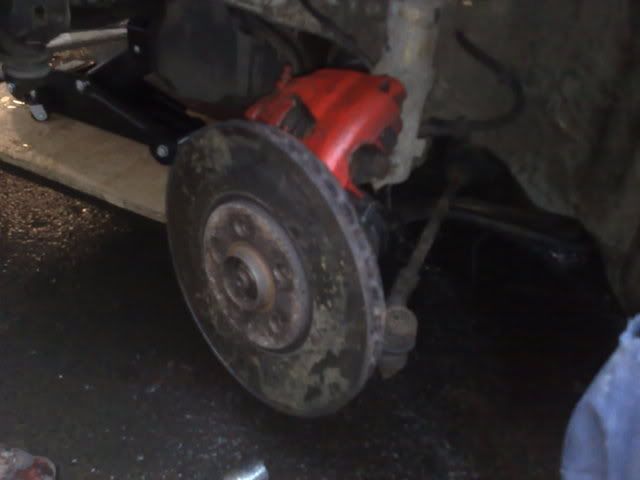

Next stage is pretty simple, simply pulling your caliper off using an alen key on the two bolts on the back and the caliper will lift off. NOTE** do not let the caliper dangle by the brake hose, this can damage the hose, either hang it from the spring with a wire or balance it on the hub.
Remove the old caliper carrier 2x 17mm bolts and throw it away (you have a nice new one to install in its place)

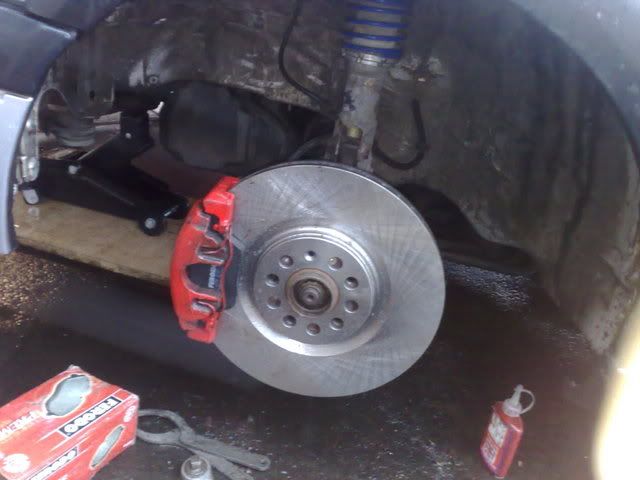

Now simply bolt up you new carrier with the spacer BETWEEN THE CARRIER AND HUB with your new bolts

the rest is easy simply reinstalling everything as they came apart, replacing your brake pads with new ones.



hope this comes in handy to anybody wishing for better brakes on a budget. Its wet outside so i cant give a good feedback right now but initial impression is its a worthwhile improvement.
http://****************.com/smile/emthup.gif


Modified by MPMX at 7:23 AM 1-29-2008


·
Registered
Joined
·
288 Posts
Discussion Starter #4
Re: 312mm brakes conversion(Audi TT setup) write up / DIY (Dan J Reed)

Quote, originally posted by Dan J Reed »
Neat idea!
So the 6mm spacer is just that? A spacer to center the caliper over the disk?

you got it


·
Registered
Joined
·
288 Posts
Discussion Starter #5
is the mk3 diy thread still going? i cant see it.
would love for this to be added to it if it still exists


·
Registered
Joined
·
8,010 Posts
Re: (MPMX)

Props for a DIY. But When you can get conversion kits to do this from BFI or ECS for ~$350 (= 176GBP) I don't see the hassle factor, unless you get killed on shipping, VAT, etc.


·
Registered
Joined
·
288 Posts
Discussion Starter #8
Re: (Jettin2Class)

Quote, originally posted by Jettin2Class »
Props for a DIY. But When you can get conversion kits to do this from BFI or ECS for ~$350 (= 176GBP) I don't see the hassle factor, unless you get killed on shipping, VAT, etc.

we get killed for shipping and import tax and VAT. its barely worth it. and this actually only cost me £120, but early spec brake guys will spend 200 as they need calipers and hoses.


·
Registered
Joined
·
309 Posts
Re: (MPMX)

Wow... more and more reasons to go five stud. http://****************.com/smile/emthup.gif
If I was tempted, could you make me some spacers? I pay.


·
Registered
Joined
·
15,289 Posts
Re: (2pt. slo)

Nice setup. But I'm still partial to the Girling 60 setup (although they have been making a ton of noise lately http://****************.com/smile/emthdown.gif )


·
Registered
Joined
·
288 Posts
Discussion Starter #12
Re: (my_tdi_is_blue)

Quote, originally posted by my_tdi_is_blue »
Wow... more and more reasons to go five stud. http://****************.com/smile/emthup.gif
If I was tempted, could you make me some spacers? I pay.

dude. 6mm plate. a pencil, drill and a hack saw. thats all i used to make mine.


·
Registered
Joined
·
288 Posts
Discussion Starter #13

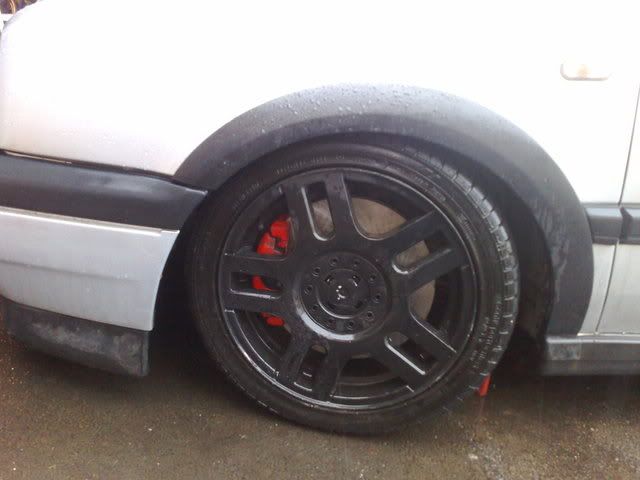

the roads have dried up and i got a chance to test the brakes out a bit better after i bed the pads in. DO THIS MOD!!!! i had the 288mm setup before and WOW what a difference, night and day! well worth the money and hassle of sourcing the carriers


·
Registered
Joined
·
8,023 Posts
Re: (MPMX)

Agreed. Well worth the small effort http://****************.com/smile/emthup.gif
BTW: I stacked two 3mm thrust washers from ACE hardware (~$2 ea) for each bolt. 8 washers total.





Modified by elRey at 6:54 PM 2-19-2008


·
Registered
Joined
·
14,126 Posts
Re: (elRey)

Quote, originally posted by elRey »
Agreed. Well worth the small effort http://****************.com/smile/emthup.gif
BTW: I stacked two 3mm thrust washers from ACE hardware (~$2 ea) for each bolt. 8 washers total.

i see you used a different caliper. is it the tt caliper? if so, what line did you use to change to the banjo setup. i have everything for this conversion excpet for that... pads, rotors, tt calipers, bolts, and spacers.


·
Registered
Joined
·
7,569 Posts
Re: (mr sarcastic)

Quote, originally posted by mr sarcastic »

i see you used a different caliper. is it the tt caliper? if so, what line did you use to change to the banjo setup.

Bump cause I'm looking to do this on a Mk2 as well.......


·
Administrator
Joined
·
87,761 Posts
Just so I know isn't this a DIY version of the Audi TT brake upgrade seen here: http://www.parts4vws.com/catal...FHawk
If so, note that they need larger wheels (16").
I run this with cross-drilled rotors and I think it's a very nice upgrade.
now if this is upgrading from a 2L then I believe it's a huge upgrade???
Good work. http://****************.com/smile/emthup.gif

EDIT: Shame on me for skimming through your first post too fast....You already stated they need 16" wheels or larger.



Modified by nater at 3:39 PM 4-3-2008
