(PICTURES UPDATED) A quick D.I.Y. Cam Chain and Tensioner *BPY engines

A quick D.I.Y. Cam Chain and Tensioner *BPY engines
This in not the most in depth write up ever but it will help many of you out to see what you are getting into (It's not that hard) just looks it.

I do want to start by saying I am not responsible in anyway for your actions and anything that may happen as a result of you doing this on your own.

The tools you will need are the following:

T40080 - 6 point socket
T10252 - Cam Lock
T10020 - 2 pin cam wrench (optional)
Ratchets - 1/4", 3/8", and 1/2"
1/2" Breaker Bar
Extensions for all three. 3" for the 1/4" and 6" extractions for the 3/8" and 1/2"
T27 Socket and Screw Driver Bit
10mm Socket
5/8 Spark Plug Socket (optional)
15mm Wrench
M8 Triple square (If you have the banjo style fuel pump)
Pick sets
Screw Drivers, both Standard and Philips head
Safety Glasses would be a good idea too.
Might need a few other little things but this is most of them

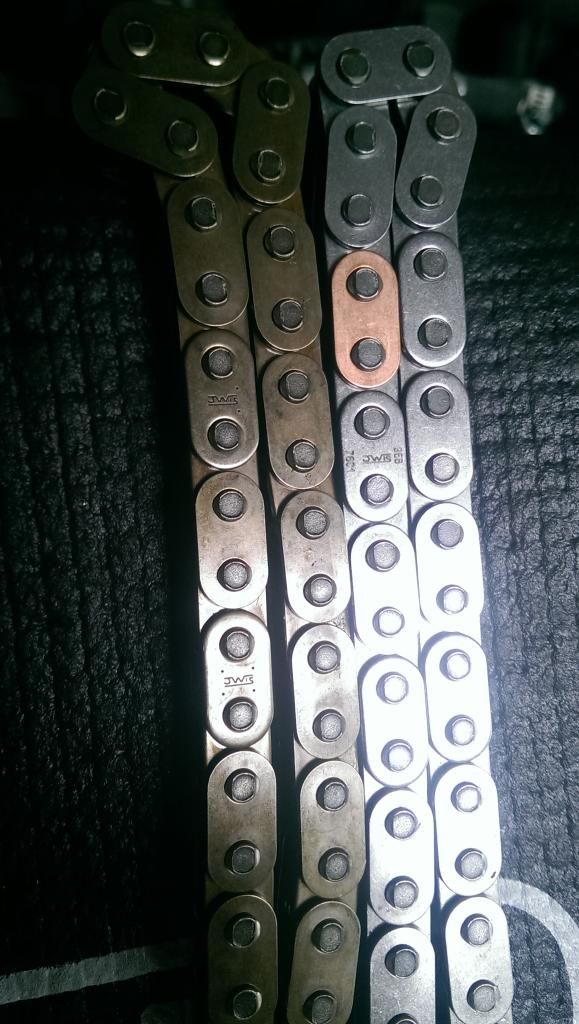

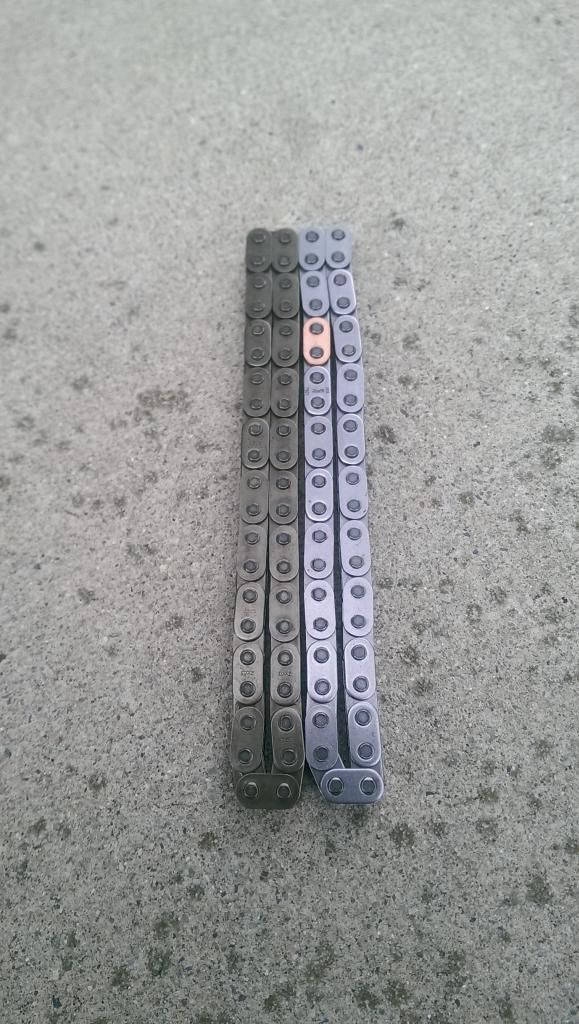

Parts you will need: - cost for parts was about $178 plus $100 for the tool kit I bought. The gaskets where all VW brand. The chain was IWIS (same as factory) as pictured and the Tensioner was from INA (same as factory) as pictured. The prices are cheaper from the companies separate compared to buying them straight from VW.
Timing cover gasket - $9
Valve cover gasket - $17
Exhaust cam adjuster bolt - $4
Timing chain - $31
timing chain tensioner - $59
HPFP cam follower (optional) - crazy if you don't while you already have it apart. - $50 with new bolts and gasket
Hose clamp - to replace factory clamp on the rear pcv hose from valve cover $1
Timing tools if you don't already have them - $100




Step One - Make sure the car is in Neutral so the engine can rotate freely. Remove your intake system (whatever brand you may have) This should be pretty simple. Not going to explain because so many mount differently. Make sure to cover the turbo inlet so you don't drop anything down in it. Paint can lid works pretty well.


Step Two - Remove the battery and battery tray. (Optional) I did this this to make more room to work and I am glad I did, You will want the room to gain access and see the lower bolts on the cam cover and to wiggle the cover off.

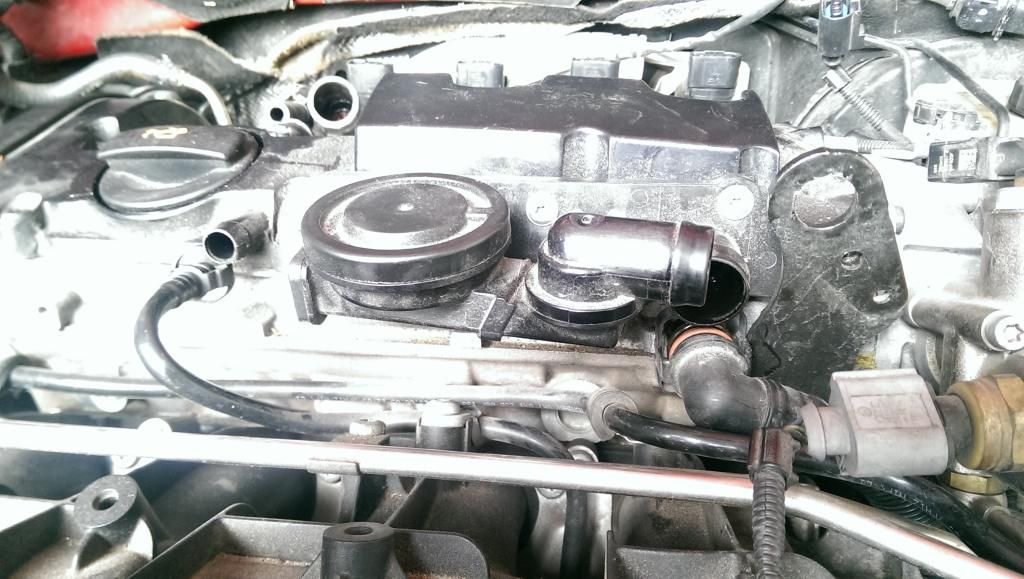

Step Three - Now it is time to start disconnecting all the plugs on the top end such as fuel pump connectors, Coil Packs, and N205 Valve. You will want to pull the coil packs out at this time. Also disconnect the vacuum line off the cam cover. If you have an aftermarket heat shield, this will also be a good time to take it out. You will want to disconnect the rear two hoses on the valve cover and all the hoses off the front PCV system.

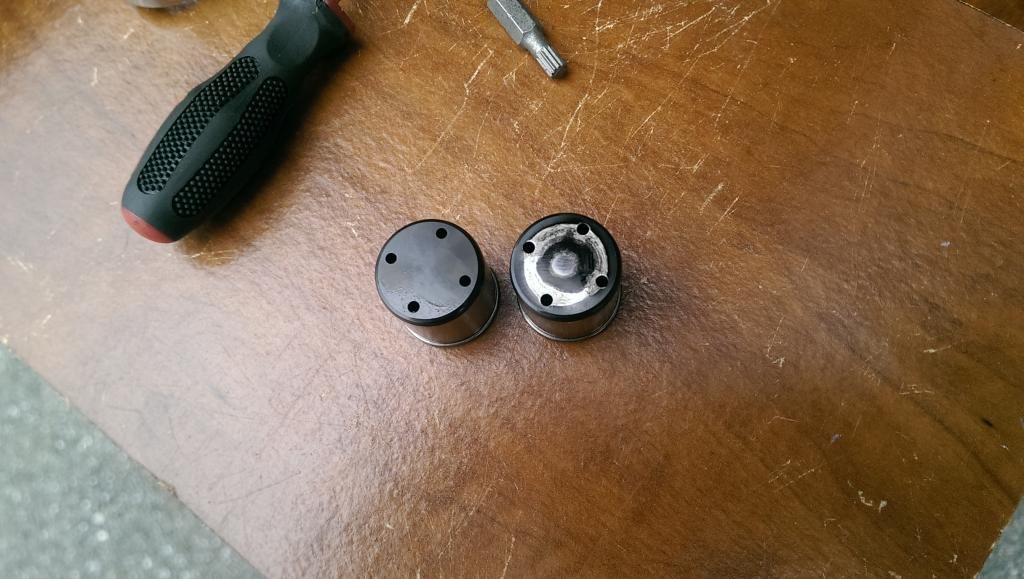

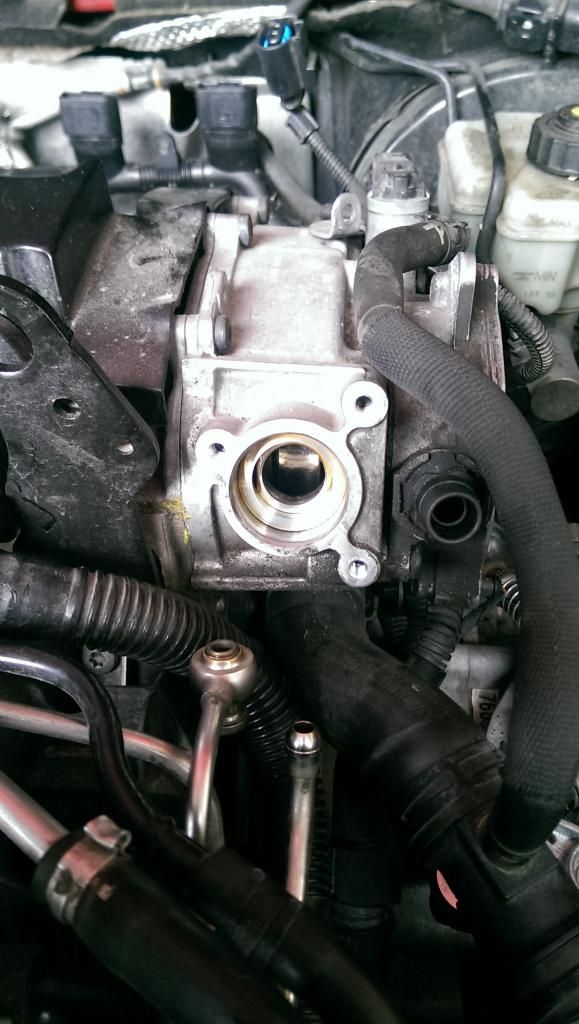

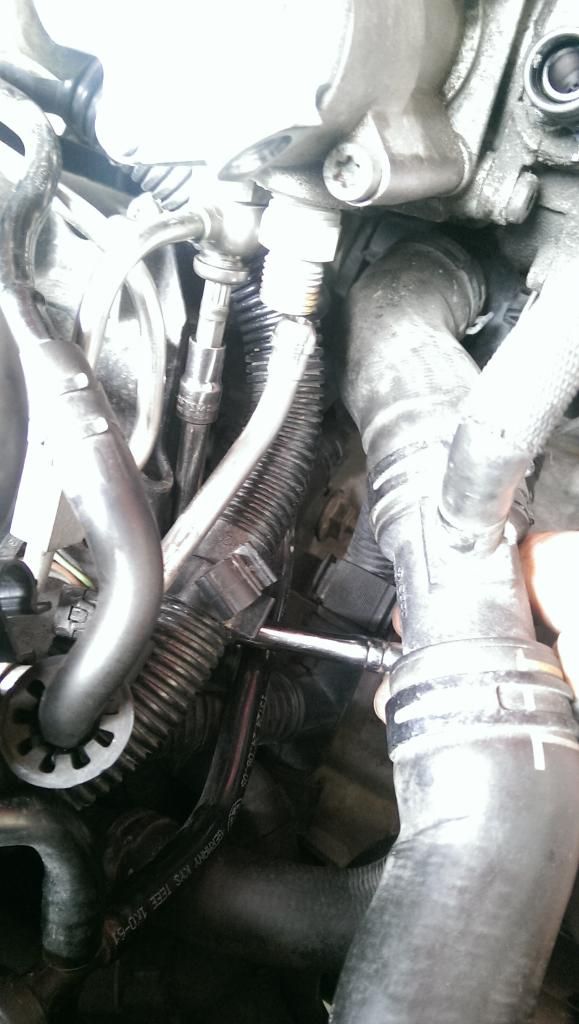

Step Four - Time to remove the fuel pump and follower. Now is also a good time to replace it since you already have to remove the old one. This is pretty simple but make sure you have rags on hand as fuel will come out when you drain the system. You will want to unscrew the cap on the bottom right of the pump and push in the tap to release the fuel pressure. This will drain fuel out so have a rag under it. After it is drained, remove the fitting from the pump to gain access to the bolt behind it. You will want to also remove the two fuel lines under the pump as well, I have the 15mm line and the Banjo bolt which is not as bad as everyone says. Put the tripple square in a socket with a 3" extension on a 1/4 drive ratchet and it comes out in less then two minute. Below is a pic showing how to do it. After they are disconnected, You can now take off the 3 bolts holding the fuel pump on and remove it.

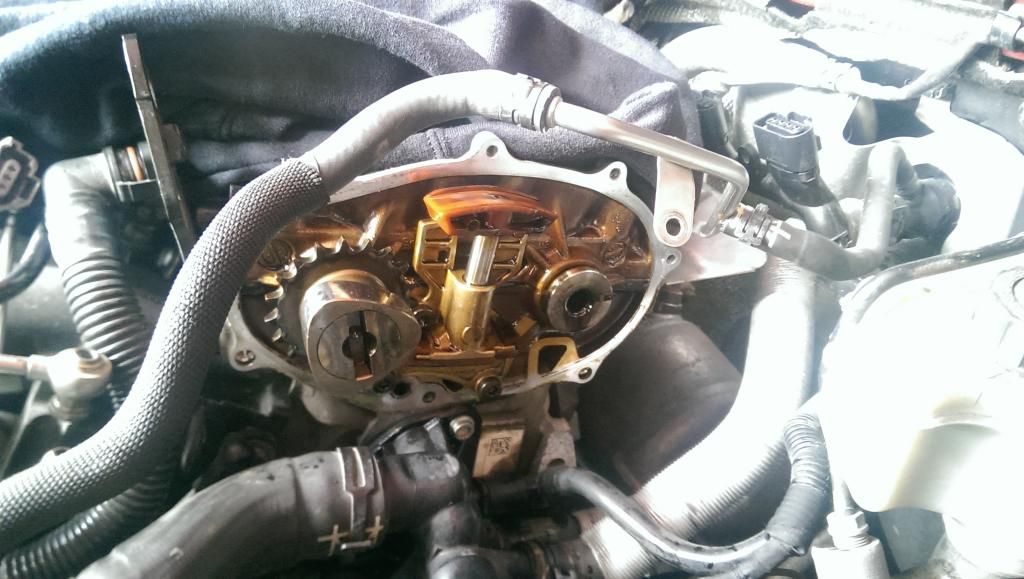

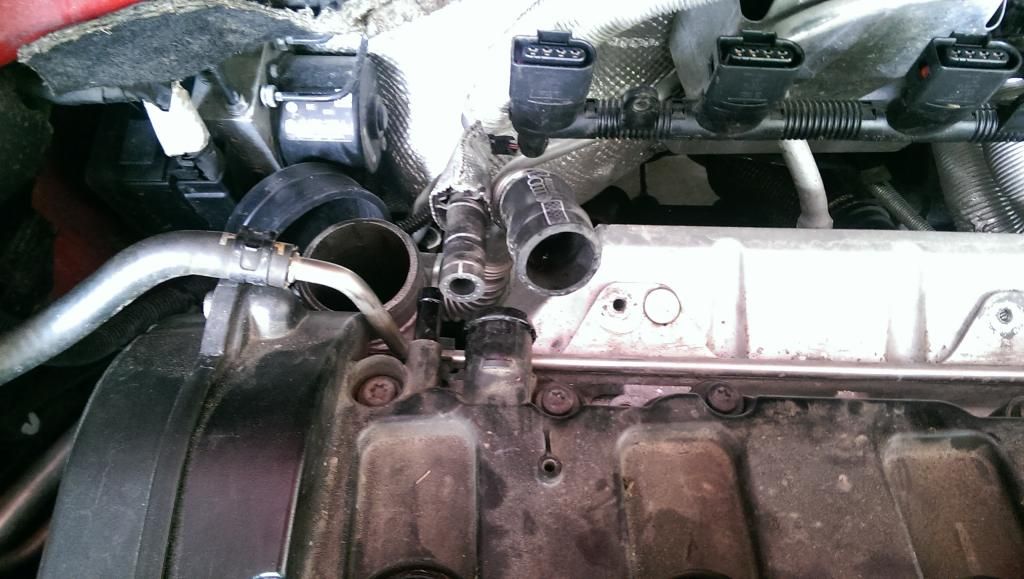

Step Five - Now it is time to remove the Valve cover and Cam Chain cover. You will need lots of rags and the cam cover will leak on the top of the trans. All the bolts here will be T27s. The valve cover is real simple. It's 14 bolts up top and 2 on the left side where the timing belt is. The just wiggle it side to side and it should come right off. You might need to pry at it, If you do, Just be very careful not to crack or break anything. The chain cover it a little bit of a pain to get the lower bolts and this is where you will be glad you removed the battery. There are 3 up top, 2 around the back, 1 under the fuel pump are, and 1 last little sucker under in the center, You will not be able to get it with a T27 socket, You have to have the bit and screwdriver for this guy. He was tucked up in so I couldn't get a good picture. You will also need to remove the 2 bolts shown in the second pic as well as removing the wire loom holder. The third pic is to show the bottom bolt location and how it is surrounded by the case. After all the bolts are removed from the housing you can now take it off, To do this, IT MUST COME STRAIGHT OUT THE SIDE, you might have to bend some of the medal lines slightly to do so but you don't want to break the rings in the housing by bending it around. Just be gentle and careful when doing this and you will be fine.

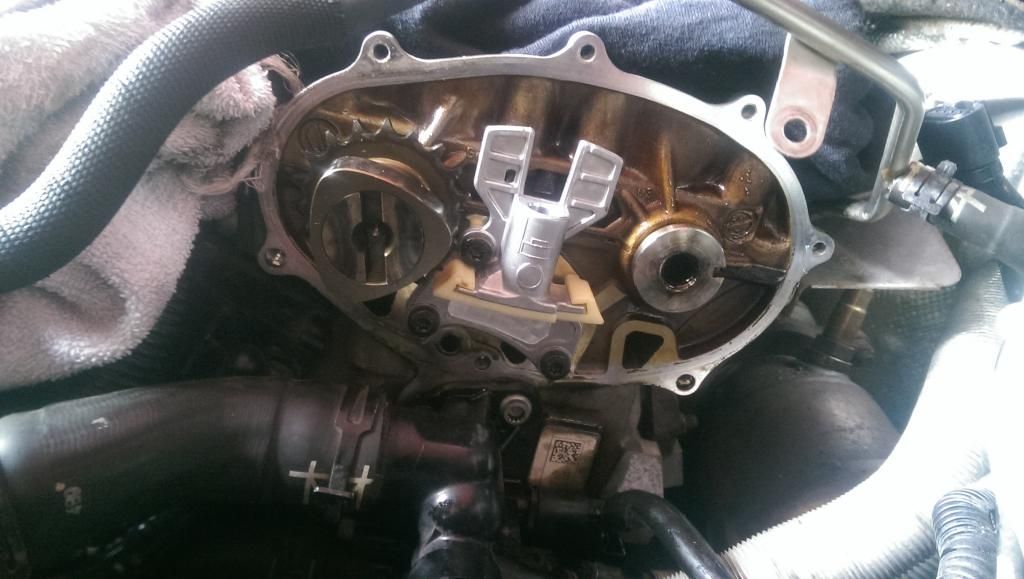

Step Six - At this point, the tricky stuff is done. The rest is easy. Now we need to rotate the engine to get the cams lined up to lock them in place. It is (optional) if you want to remove the spark plugs to make this a little easier, I did to release the compression as I rotated the engine. Here is where the 2 pin cam wrench come in, You will want to slip it in the intake cam and rotate the engine around the the notch on each cam face each other, once they do, slide the locking plate in and bolt it in to 7 ft lbs. You can now press the tensioner down and insert the locking pin to hold it down.

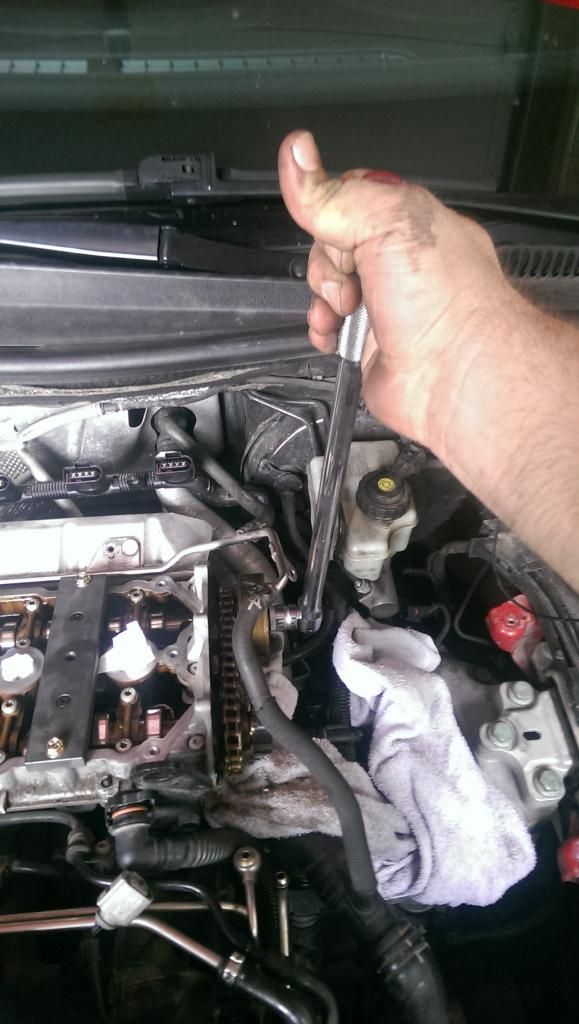

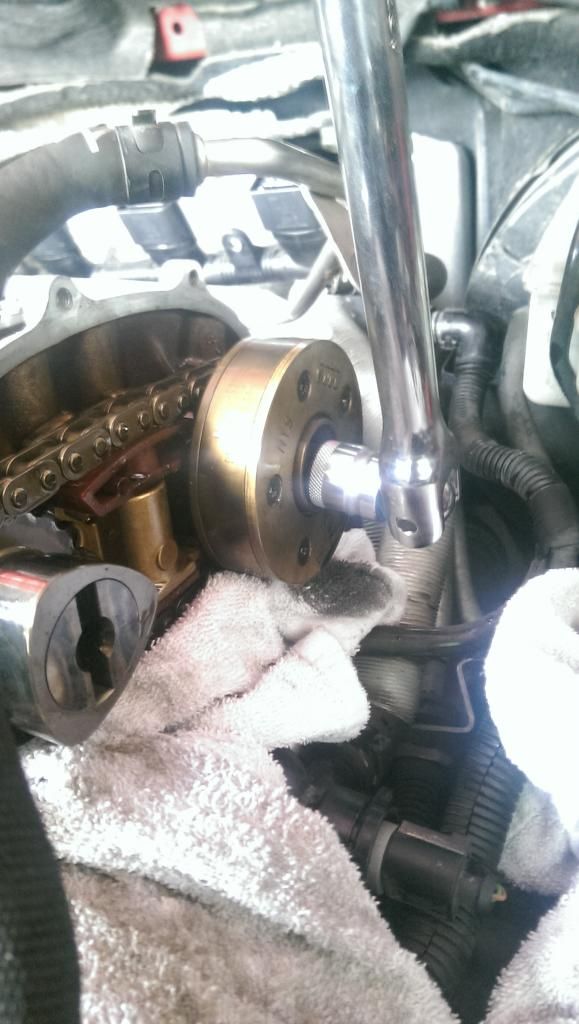

Step Seven - Time to remove the camshaft adjuster bolt and take the chain off. To do this, You need a the T40080 socket and a breaker bar. I had my brother hold the socket square and in while I pulled to break it loose. Don't be afraid to give it some force, they are designed to hold in there tight. Once it is out, You can then just slide the adjuster and chain right off.




Step Eight - We can now remove the old tensioner, It is held on by 3 T27 bolts and comes right out. After it is out, Clean up the oil passage hole, mine had some build up in the screen on the tensioner. It would explain why it was ticking.






The rest is just a matter of reverse bolting everything back up the way it came out.



Torque specs are the following All are ft lbs.

Cam adjuster bolt is 15 lbs plus additional 1/8 turn
Tensioner bolt is 7 lbs
Valve cover bolts are 7 lbs.
Cam chain case cover is 7 lbs
hpfp bolts are 7lbs
banjo bolt on fuel pump is 13 lbs
union nut on hpfp is 18 lbs

On a scale of 1-10 on how hard, I would rate a 6. It's not hard so much as how long it takes. You really do need the special tools to get the job done though. If not, You are going to break something.

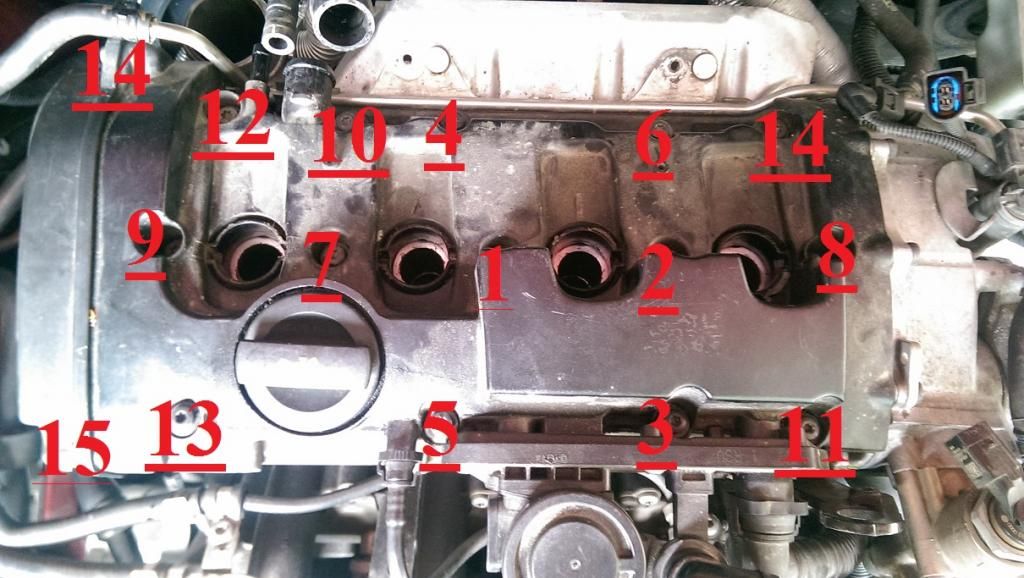

Here is the Valve cover pattern to tighten down to 7ft Lbs.



If you need any help, feel I left anything out, or any question, feel free to message me and I will see what I can do to help, add, fix, or change.


·
Registered
Joined
·
133 Posts
I ran for almost a year before replacing my noisy cam chain and tensioner. But mine only made noise on startup and not every time. Mostly during cold winter mornings.
If you do this yourself I recommend being prepared to drill out the cam bolt like this guy. Despite having the proper poly-drive bit and being carfull I also stripped mine.


·
Registered
Joined
·
2,545 Posts
Very nice write up. I drove mine for at least a year with it making the sound when at operating temp before I properly diagnosed it.

You def need the timing tools and poly drive. I was Lucky enough to not have to drilll out that bolt.

Search for specialty tool program to pick up the tools.


·
Registered
Joined
·
5 Posts
Thank you for the great write up. I just got my 06 Passat and had the noise. Just replaced this on Saturday & used your info. Only difference I found was that all the bolts were a T30 not a T27 on my vehicle. New chain & Tensioner & my car does not sound like a diesel any longer!!


·
Registered
Joined
·
289 Posts
Great DIY; I just printed the whole thing. My '08 has been occasionally makes noise on cold start. Stops within a few seconds. Right now, I'm prepared to gamble on getting through to warmer weather in the spring before I do this.

Thanks for a really, really thorough, exceptionally well photo documented DIY. Great job.


·
Registered
Joined
·
161 Posts
Is there a reason why the engine cannot be rotated by turning the crankshaft bolt to align the camshafts? To avoid buying the special tool, T10020.


·
Registered
Joined
·
916 Posts
Discussion Starter #12
Is there a reason why the engine cannot be rotated by turning the crankshaft bolt to align the camshafts? To avoid buying the special tool, T10020.
Not really, you just run the risk of damage to the threads and such. you are better off finding something to fit in the slot where the vacuum pump goes in


·
Registered
Joined
·
1 Posts
Hey whats up guys this is my first post and i just registered with this site.

Well im in the middle of this timing chain replacement for the first time on the fsi. Fyi this is not my first timing belt/chain replacement i actually have 18 years of automotive and diesel work experience.

So here goes, the exhaust cam on the chain side has 1 visible timing mark [dash] on the outer edge next to the teeth and on the same exhaust cam u have the key way near the base that i have read that some have used as a timing mark is this accurate? Also on the intake cam on the chain side, I only see a dot on the outer edge so im assuming i will use this dot for the timing. Also i have read that you can count 16 rollers on the chain between these markings to confirm the timing but which markings are they referring to?

I just need someone to show me how these timing marks on the chain side correlate with the timing belt, timing marks since it is obvious to see where the timing marks are on the belt side.

Sorry if i confused some of you guys. Just hope this makes sense to somebody.


·
Registered
Joined
·
82 Posts
When this starts to go, would it be constant? Or somewhat random at first? It's obviously going to tick in time with the engine, but sometimes you'll hear the tick, sometime not... it will come and go at idle?


·
Registered
Joined
·
2,622 Posts
Any word on what mileage to change this at? I dont see this in the factory maintenance schedule.


·
Registered
Joined
·
1,747 Posts
Any word on what mileage to change this at? I dont see this in the factory maintenance schedule.
It isn't a maintenance item. They supposedly last forever, but there have been some reported failures. Mine has always made the rattle on cold starts, then it goes away. Just flashed to Stage 2 with 170k miles so gotta do it for peace of mind.


·
Registered
Joined
·
15 Posts
Thanks for the write up, I just purchased my first a4 tfsi a few months ago and with the colder weather now in it has started to make the dreaded noise. This has gave me a good way to tackle the job in hand
