Discussion Starter · #1 ·
This is a thread to post pics of different configurations of compressors, tanks, valves, etc. to help those trying to figure out cool ways to mount everything up.

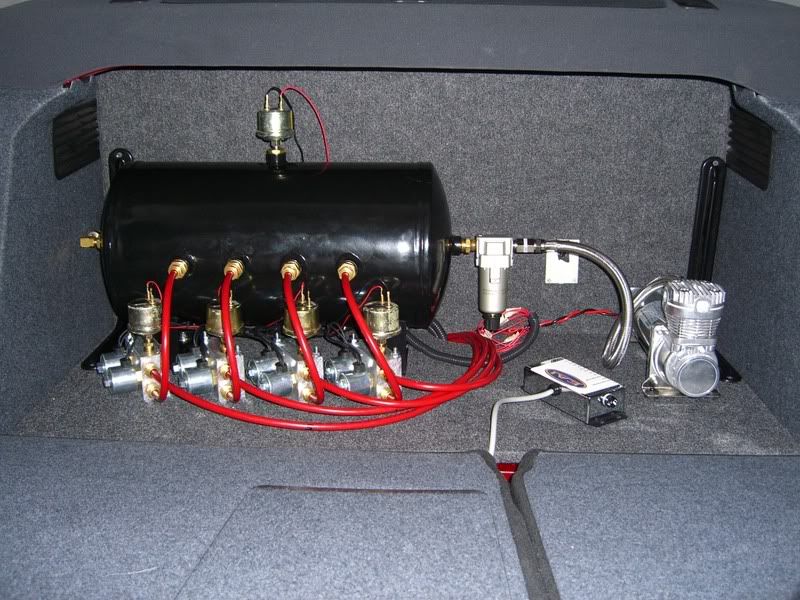

And an older pic of the setup in my car (I've cleaned up the wires and mounted everything now):




Modified by Capt. Obvious at 10:52 AM 12-24-2007


·
Registered
Joined
·
9,671 Posts
Re: Air management picture thread (The_Sauce)

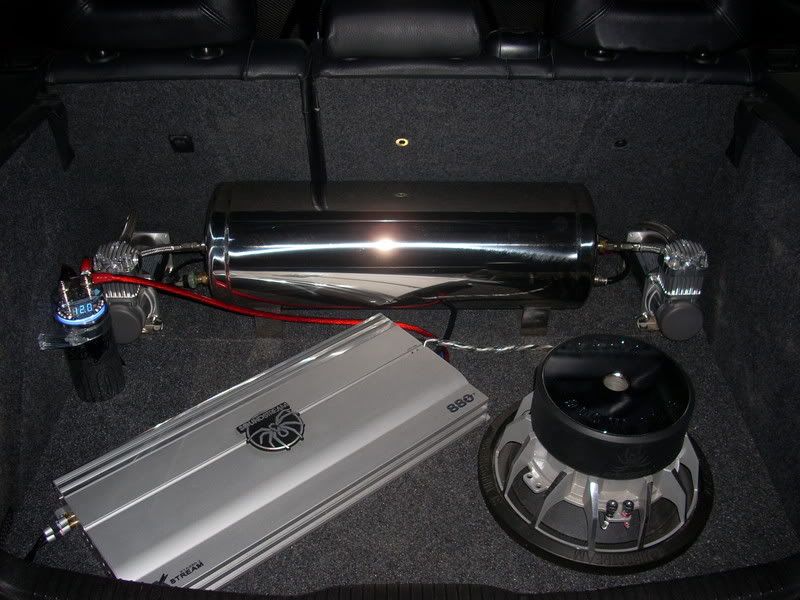

Still need to finish up the fine touches on the box. And get better pix. But us ee my tank in the back


·
Registered
Joined
·
2,836 Posts
Re: Air management picture thread (diive4sho)

here is my setup, the tank and the valves are very old, they were on another car at least for 3 years before i got them, but surprisingly still work.
i also have a spare wheel inside , so thats the reason everything is exposed like that, plan to do a lot of work to the whole system, just need to find some mk4 lowering springs, so i could still drive the car while working on my air.


Modified by Rat4Life at 9:39 PM 12-21-2007


Modified by Rat4Life at 12:38 AM 12-22-2007


·
Registered
Joined
·
4,781 Posts
Re: Air management picture thread (Rat4Life)

i'll try to take a pic of mine today, just gotta pull the sub box out first
it turns out that i'm better at building the setups than i am taking pictures of them
damn camera's always broken or out of batteries.
