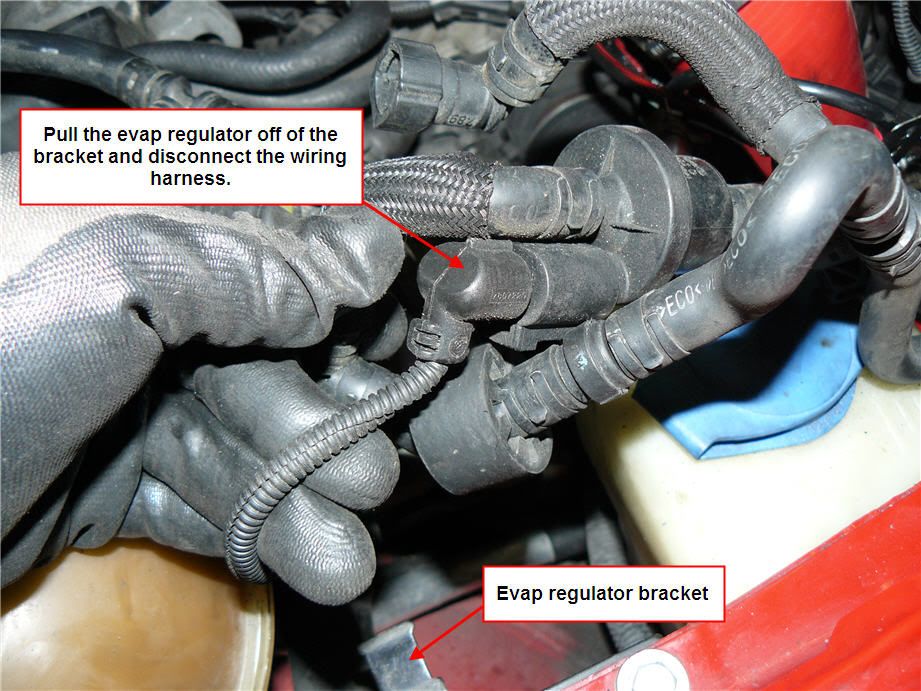

I spent a lot of time on this, I hope it will be helpful. This is the guide I put together to be used in conjunction with a kit I put together. I did the install on both a AWP and AWD motor. There are slight variations in the vac lines, but the instructions indicate which motor is in the picture. If I am missing anything, please let me know.

Engine codes this write up has worked on (if you have a engine not listed and this has worked for you, let me know and I will add it to the list):

AWP
AWD
AUQ
AWW
AWV
AWM


I will make you a kit if you are interested. PM me for details.
http://forums.vwvortex.com/showthre...h-everything-you-need&p=64471922#post64471922

For those who want to piece the kit together, here is what I used:

- Integrated Engineering Block Plate
- 4 10w 330OHM Resistors
- 8 feet of 3/4" Hose
- 4 feet of 1/2" Hose
- 4 feet of 5/32" vac line
- 2 3/4" 90 degree PCV Elbows
- 1 3/4" PCV "T"
- 12 Medium Hose Clamps
- 6 Small Hose Clamps
- 1 Pack of Assorted Small Vacuum Caps
- 1 Pack of Large Assorted Vacuum Caps
- 1 Homebrew Catch Can
- G12 Coolant


Optional (While your in there) Parts:

- Coolant neck: Automatic Transmissions: 06A 121 133 AH Manual Transmissions: 06A 121 132 AP
- Newsouth Performance Power Gasket, or stock intake manifold gasket
*Now is also a REALLY good time to install a oil pressure sender using the port on top of the filter housing to use an aftermarket gauge.


Tools Needed:

- Gloves
- Flathead Screwdriver
- Set of allen wrenches, or allen bits for your socket wrench (5mm, 5.5mm, 8mm, some other may be needed)
- Socket Set (8mm, 10mm, some others may be needed)
- Cutters
- Soldering Iron
- Solder
- Electrical Tape
- Zip Ties
- Jack and a Jack Stand (to be safe)

**Disclaimer** - I am not responsible for any damage done to the vehicle or yourself by performing this modification. I am simply collecting all the items needed and providing them to you as a convenience. Most states require the emissions systems on your vehicle and removing them could cause your car to violate your state's emissions laws. That being said:

GOOD LUCK!!

Finished product:



[Andaloons]

Well done!



[nstevic01]

Well done!

Thanks! Took forever, but it feels good to have it done.



[NOLA_VDubber]

Thanks! Took forever, but it feels good to have it done.

Very impressive!



[sounrealx]

diy

"ultimate" delete is right. Good job!



[bpfoley]

how is readiness handled with these modifications? I need to pass inspection in NYS.



[nstevic01]

how is readiness handled with these modifications? I need to pass inspection in NYS.

Without proper programming, you most likely wont be able to pass. I'm not sure which of the ECU programmers offer that.



[kendaliscool08]

Can I remove the blue balls without any reprocussion? I'm been trying to remove useless junk in my engine bay and i already have capped off the one on the valve cover. (Doing this without removing evap)



[nstevic01]

Can I remove the blue balls without any reprocussion? I'm been trying to remove useless junk in my engine bay and i already have capped off the one on the valve cover. (Doing this without removing evap)

The blue balls are hidden and weigh nothing. IIRC they are required for the EVAP to function properly and not throw codes (since you want to keep the EVAP). You really would only want to remove them if you were doing this entire delete.



[RobClubley]

Awesome guide! Thanks for taking the time to create it.



[waabaah]

bump for later reference



[hootyburra]

Sticky this

Add this to the faq, along with sav's diy even a moron should be able to complete this. :what:

You should add a not to stick some paper towels in the intake ports so you don't accidentally drop anything down into your engine



[turbo2205]

awesome write-up; clears up alot of the ?s ppl had with the other write-ups. this needs to be stickied. and PLS try to keep your pics hosted so they dont disappear from this write-up, since it's pic-based.

well done :beer:x12 for u.



[Alex's_GLI]

for a programmer that cancels the emissions CELs, eurodyne maestro you can delete them yourself so they never pop up again, and I know APR will do it if your Stage 3+ but thats it.

If anyone finds a tuner that will do it for them let us know!


Amazing DIY.



[nstevic01]

for a programmer that cancels the emissions CELs, eurodyne maestro you can delete them yourself so they never pop up again, and I know APR will do it if your Stage 3+ but thats it.

If anyone finds a tuner that will do it for them let us know!


Amazing DIY.

Eurodyne Maestro 7 is $899.99 Although for what you can do with it, it seems worth it.



[Tacosupreme]

Very good write up :beer:



[dubinsincuwereindiapers]

Eurodyne Maestro 7 is $899.99 Although for what you can do with it, it seems worth it.

Worth every dime.. Even on a stock turbo setup



[Tacosupreme]

Is it safe to remove the pcv valve?



[nstevic01]

Is it safe to remove the pcv valve?

If you are talking about this piece, it stays. Only other "stock" piece that remains is the Brake booster check valve.



[Henni]

Great write up!
