well i decided to do bags instead of coils so i dont bust my oil pan pulling in and out of my driveway. ill just let the pics do the talking cuz i know thats what you guys all want.
Btw heres the car in question.

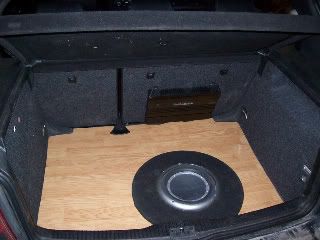

and heres how the trunk started out

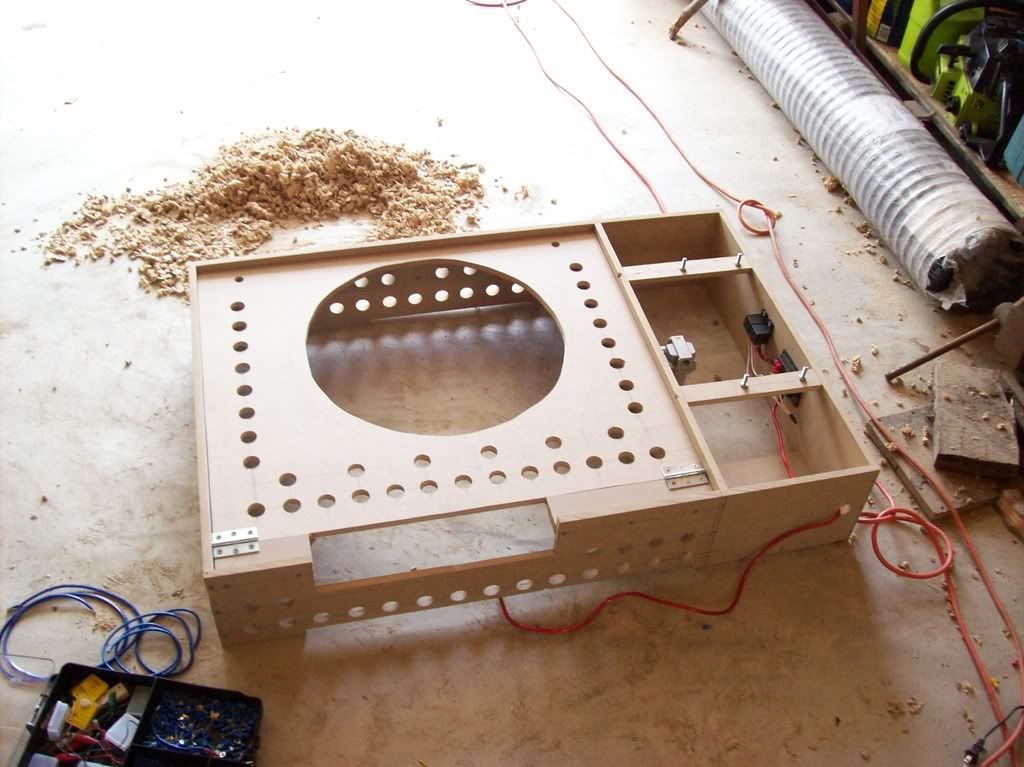

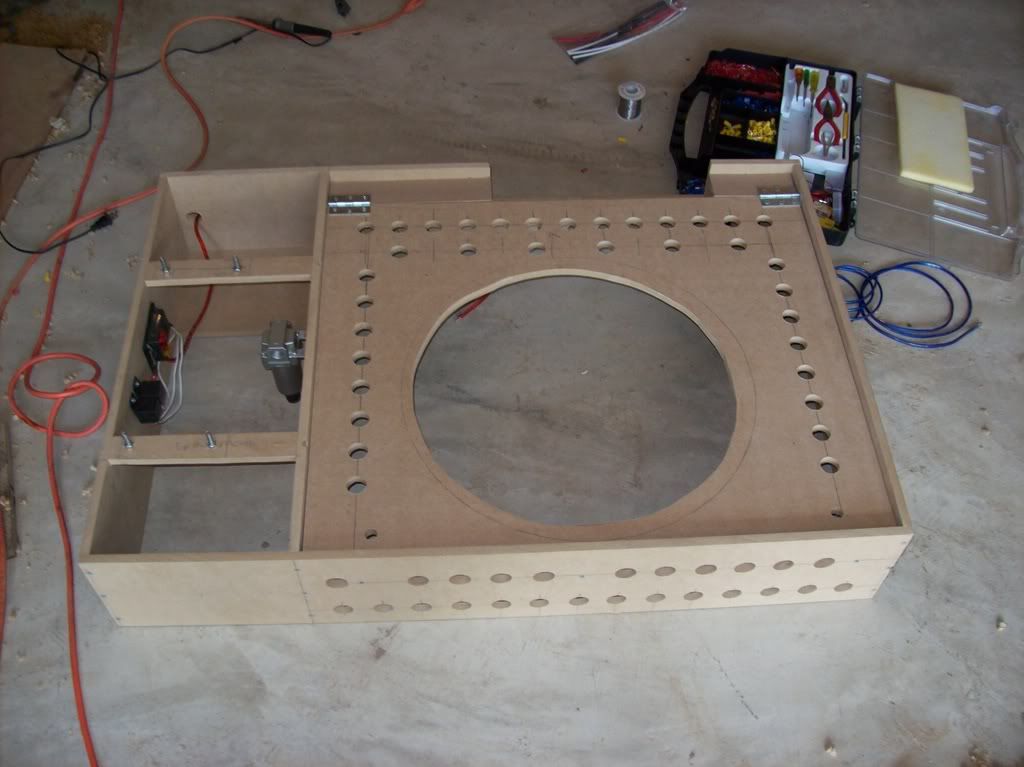

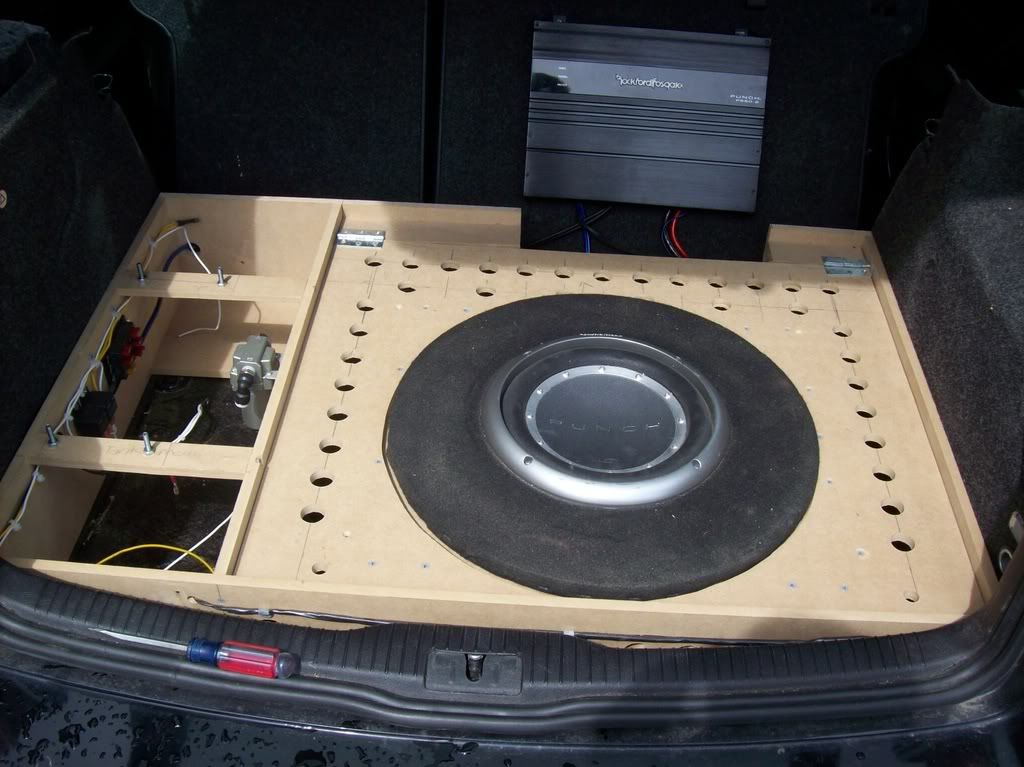

started by building a frame to mount all the components in and raise the floor 7 inches

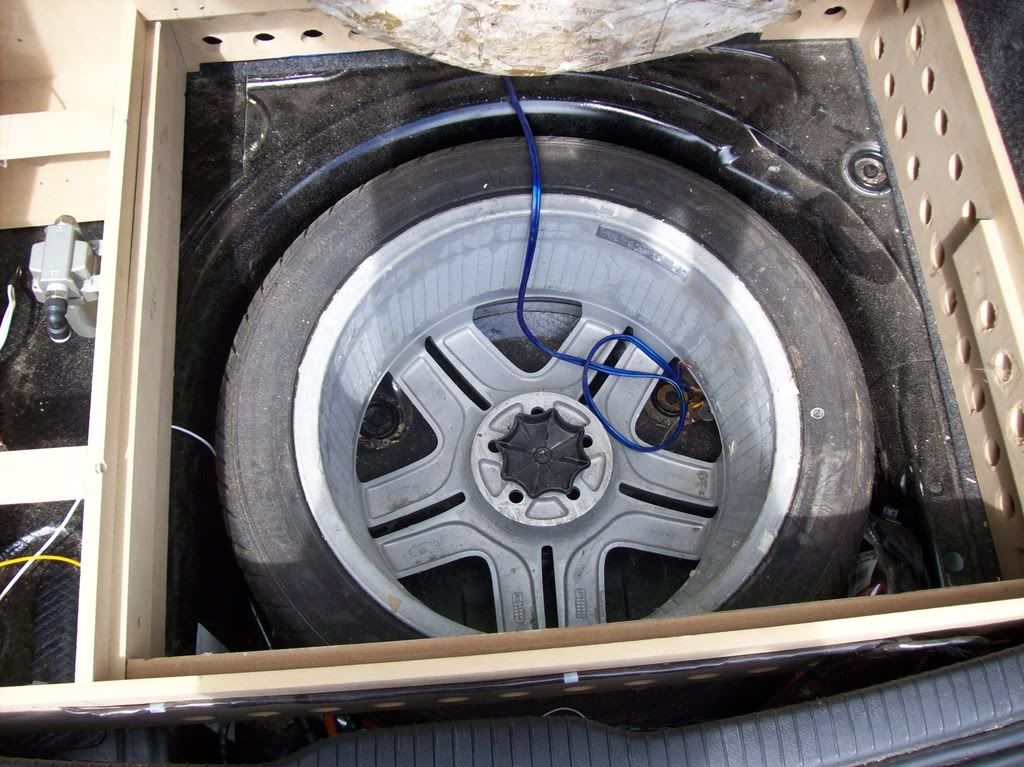

spare tire access

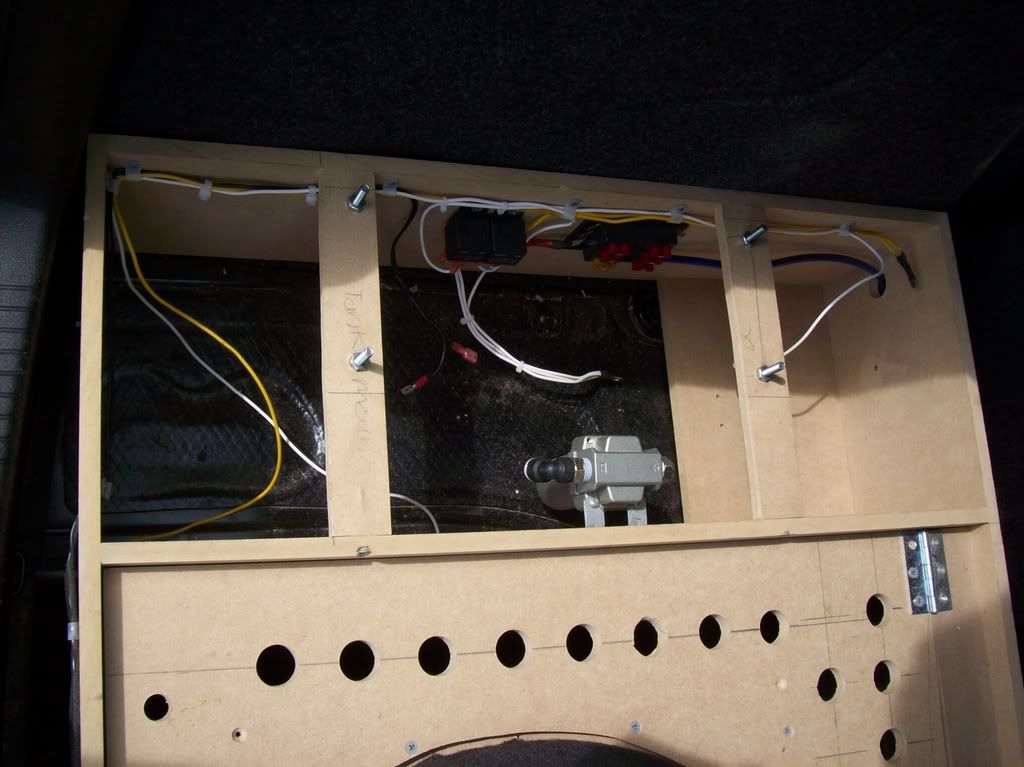

got a little bit of the wiring done too

then i made the false floor and wrapped it in suede to match the headliner and pillars

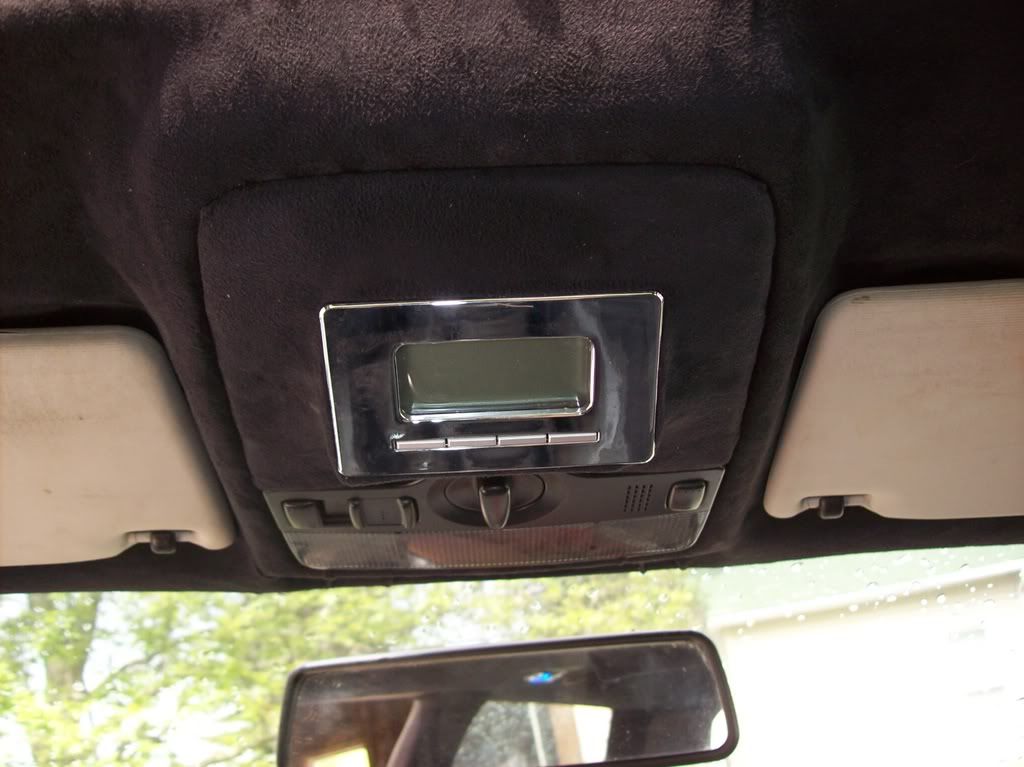

and i also molded the digital gauge in the sunroof motor cover

now im just waitin on the compressor and bags
let me kinow what you think so far though



[vdub-ranger]

Re: Guardian's build thread (guardian1020)

nice dude. that box and controller are extremely clean. good luck http://****************.com/smile/emthup.gif



[diive4sho]

Re: Guardian's build thread (guardian1020)

Looks really good....is it just the camera angle or is the hole for the sub cut off center?



[guardian1020]

Re: Guardian's build thread (diive4sho)

Quote, originally posted by diive4sho »

Looks really good....is it just the camera angle or is the hole for the sub cut off center?

yeah it was right after i took that pic i fixed it so the sub sits evein in the hole http://****************.com/smile/emthup.gif



[guardian1020]

Re: Guardian's build thread (guardian1020)

got the valves all plumbed and wired



[Santi]

looks sick so far.



[guardian1020]

Re: (Santi)

Quote, originally posted by Santi »

looks sick so far.

thank you sir



[From 2 to 5]

Re: (guardian1020)

lookign very clean and tidy sir...



[MFZERO]

FV-QR

nice build up.



[guardian1020]

Re: Guardian's build thread (guardian1020)

UPDATE...
got the switch box fabbed up and wired and finished wiring and installing the valves in the trunk...

heres where it comes out of the center console

valves are now wired and plumbed

and i got all the wiring for the gauge done

compressor gets ordered on friday and then i just have to save for the bags http://****************.com/smile/emthup.gif


Modified by guardian1020 at 9:20 AM 8-13-2008



[dmoney]

Watching this one, clean so far!



[Santi]

You made your own switch box? thats pretty sweet.
And the wiring on this is clean as hell..



[diive4sho]

Re: (Santi)

I'm loving the fuse block and relay setup...really clean.... http://****************.com/smile/emthup.gif



[guardian1020]

thanks guys
yeah the switchbox is easy to make all you need are some switches and diodes...and the best part is it was under 20 bucks for parts



[guardian1020]

Re: (guardian1020)

UPDATE.
got the compressor, a new psi sender, and pressure relief valve, put it all in and it fills up and holds air

here are some pics
now all i need are the bags and struts http://****************.com/smile/emthup.gif

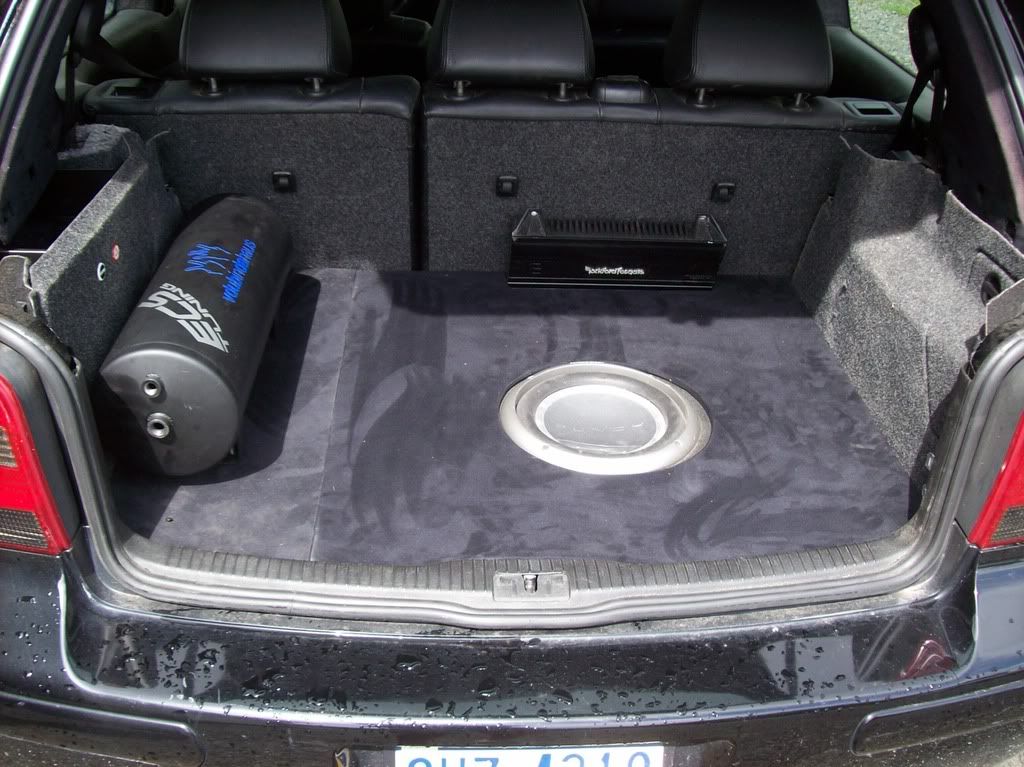

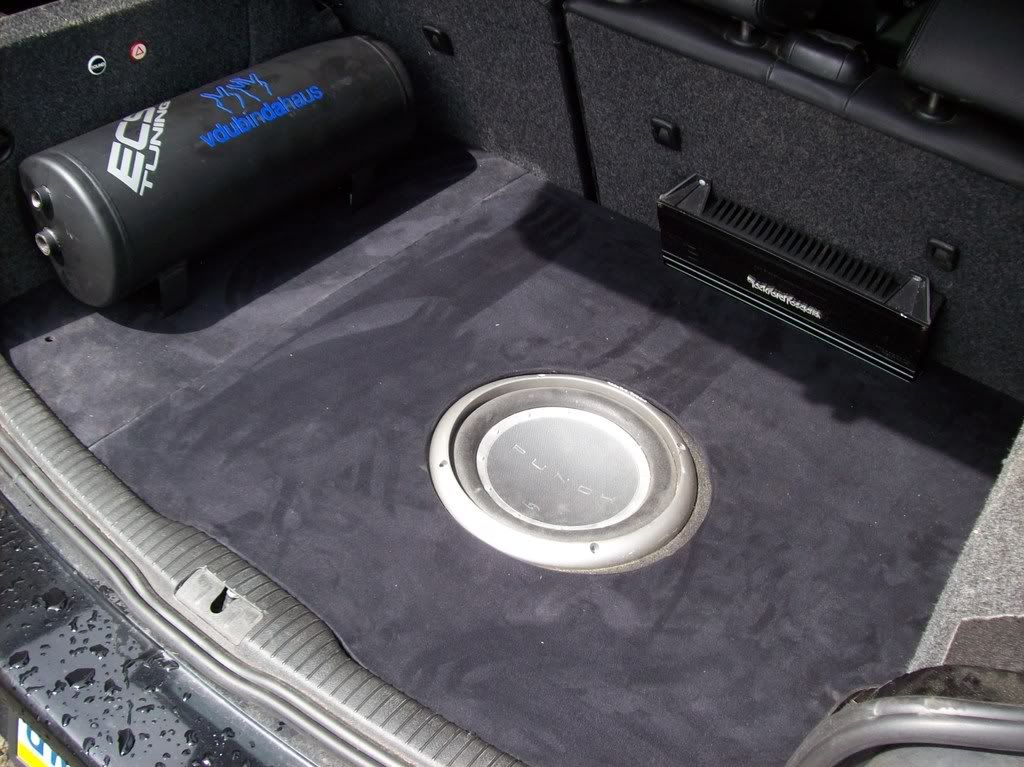

and here is the finished trunk



[sirswank]

Re: (guardian1020)

Quote, originally posted by guardian1020 »

FINALLY!!!!!
no more burst tanks, DOT or otherwise. (not that i'm advocating non-DOT approved tanks, but if you wanna risk life and limb to save a few bucks, at least put one of these bad boys in a port)



[guardian1020]

Re: Guardian's build thread (guardian1020)

ok so i finally got the bags in after all the set backs i was having...before we all get started, the rears still have bumpstops, they will be coming out when i3 get new struts.
and the fronts will go lower after i get the new struts also...anyway on with the DIRTY pics...i hate mud



[CapeGLS]

Re: Guardian's build thread (guardian1020)

Great wiring job.



[Lblizzie]

subscribibeddd!
Looks awesome!
Any reason why you drilled holes in the floor? Weight savings? I didnt read the thread...maybe it was asnwered



[guardian1020]

Re: (LBVdubin)

Quote, originally posted by LBVdubin »

subscribibeddd! Looks awesome! Any reason why you drilled holes in the floor? Weight savings? I didnt read the thread...maybe it was asnwered

i wanted it to be as light as possible, whether it helped or not i dont know but i tried
