Hey. So I've got no locks on my doors using Passat rear handles modified to fit the Corrado, but this left me with a dilemma. How do I roll up the windows and close the roof (93 up models Only) without a key hole to use?




Well, I installed the rightclick plug and play keyless entry system in my 93. If you obtain this:
Keyless Plug and Play kit is here "Rightclick"
It will have keyless locks with no roll up of windows with 3 plugs.
To start the install, you need to pull apart the right rear section of the carpet. This means pulling out the rear deck lid support on the right hand side to expose the carpet under it and the harness location.
Pull the pump cover off by loosening the strap with a 10mm. This should expose the pump and all wiring needed.

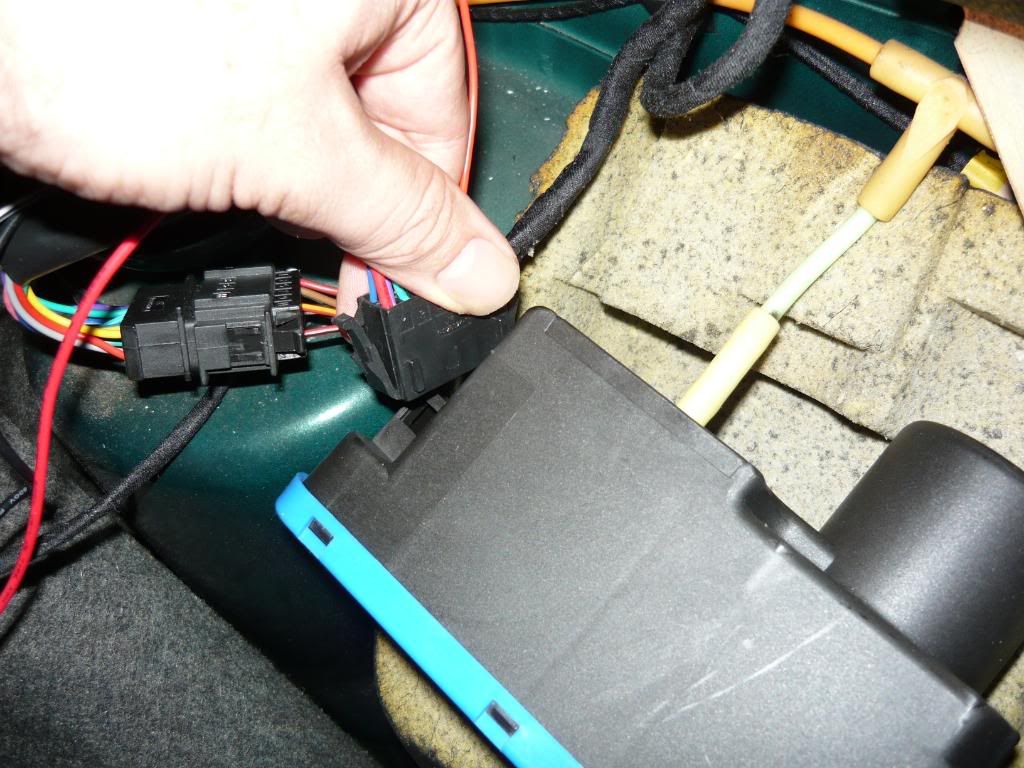

Unplug the harness from the pump and insert it into the P&P Harness provided in the P&P kit.
Then plug the new connection back into the pump,

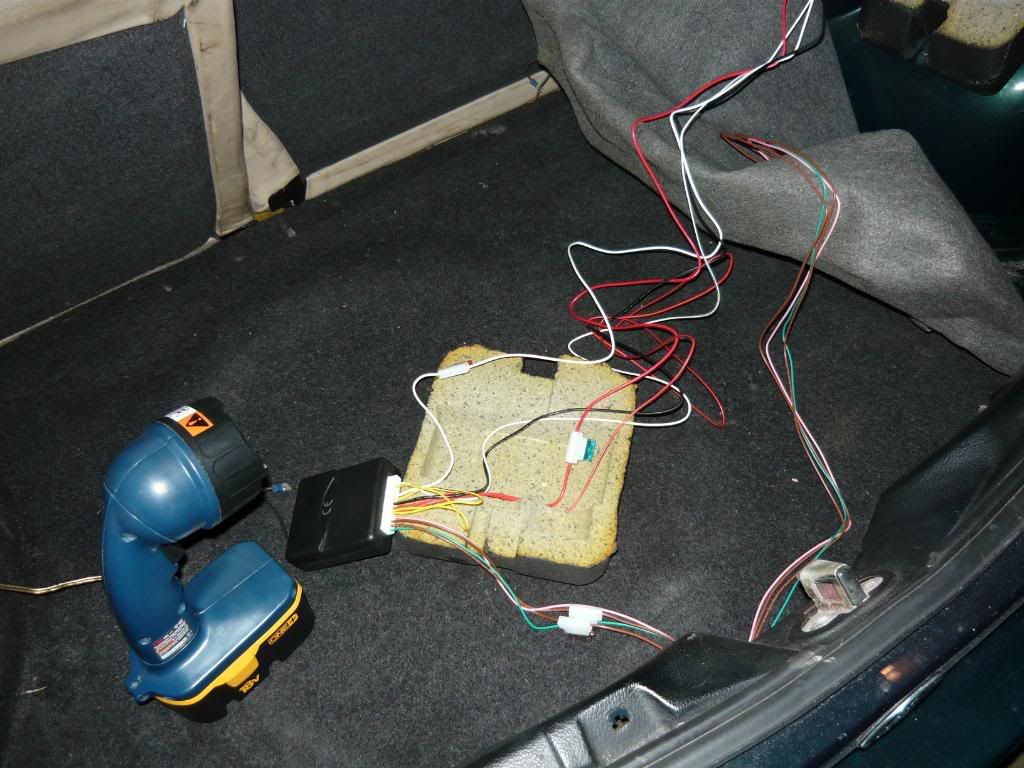

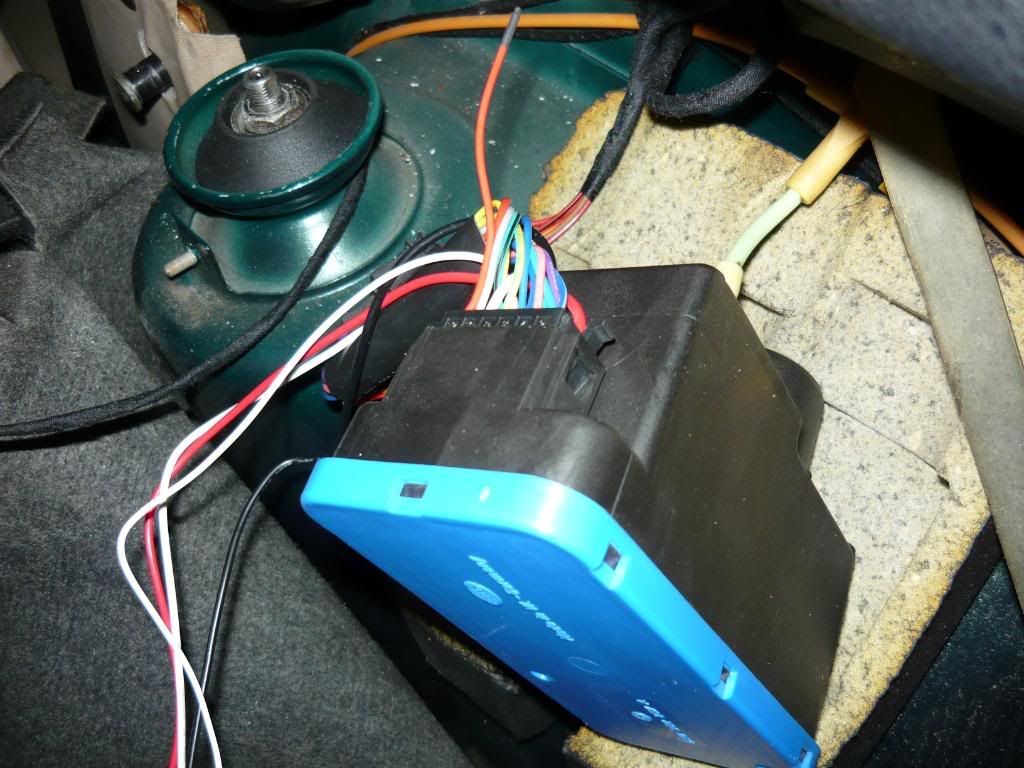

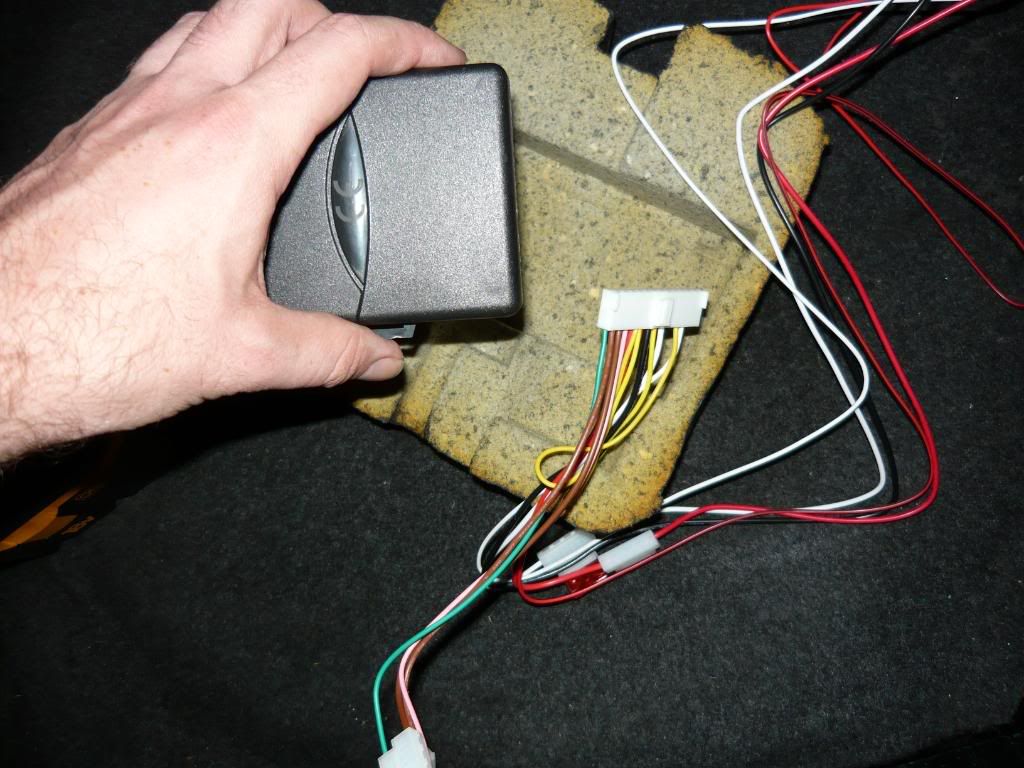

Last to make the locks work via remote, plug in the brain of the unit.






Next is the optional Blinker flash when locked, and when searching for the car it will flash 3 times for you. these are done by utilizing the connection from the unit and has 2 brown wires to tap into the factory flashers which are:

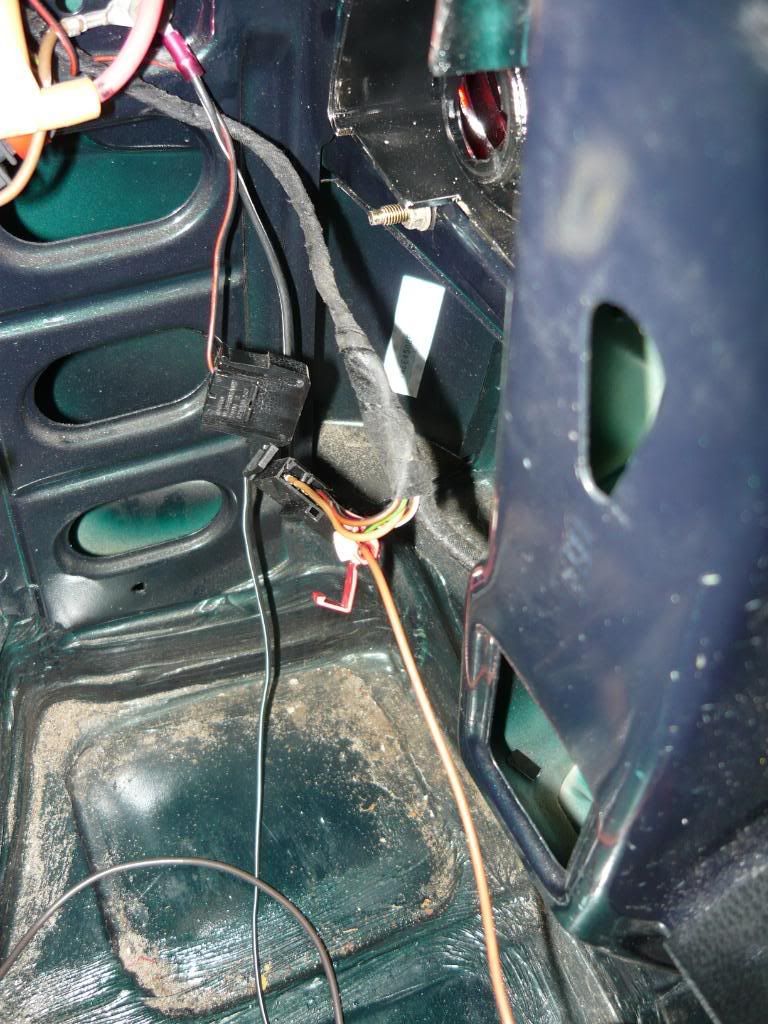

Drivers side = Black/white wire. to have enough room to leave the unit tucked in the pass corner, i extended this wire and ran it through the same location as other wiring across the back so the wire could be secured.
Passenger = Black/Green. There is no need to extend this wire as the unit is closer to this side of the car.
Drivers side wire extended before tucking.



Ok, here was what was stumping me. Window and roof closes by holding key in lock position on either door handle. How do you simulate the holding of key in lock position with no door locks to put a key in? The unit only puts out signal for .5 seconds without the additional signal wire connected. 4 seconds if you cut the Pneumatic lock. DO not wast your time on that because the windows and roof take way longer than 4 seconds to roll up.
Green Wire on unit:
The unit comes with a window output wire that has a signal for 20 seconds. Problem is the pulse from the unit is negative, and the signal needs a relay placed in line to switch that signal to pulse the lock wire.

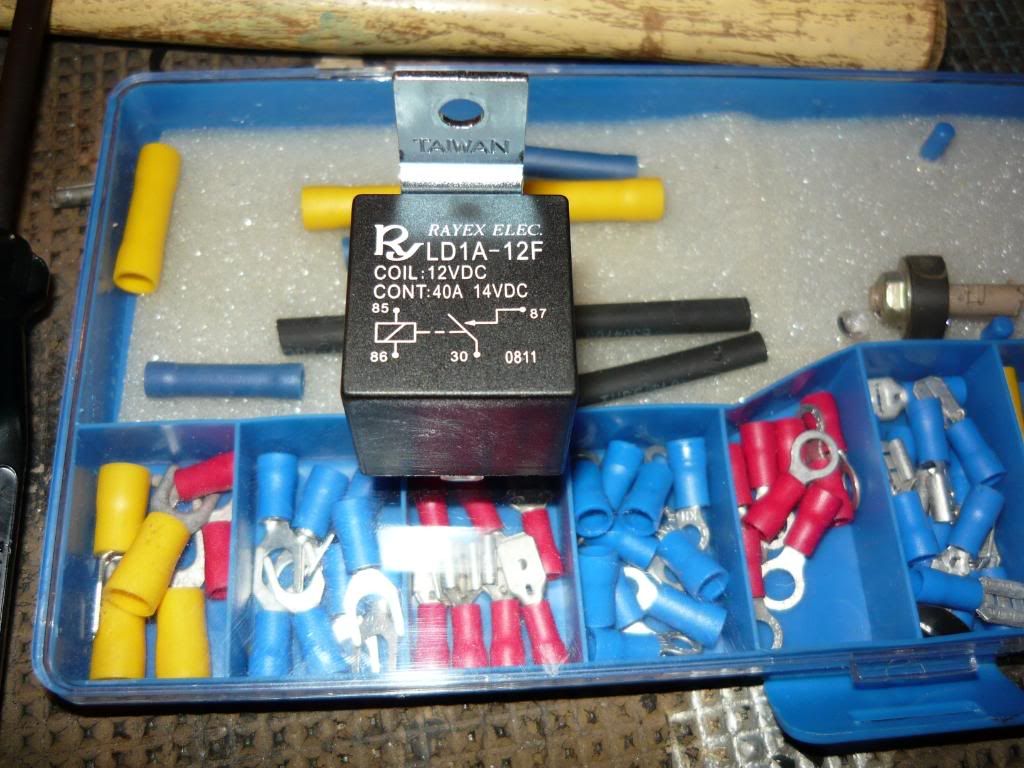

I used a universal 4 pin relay to make this work.

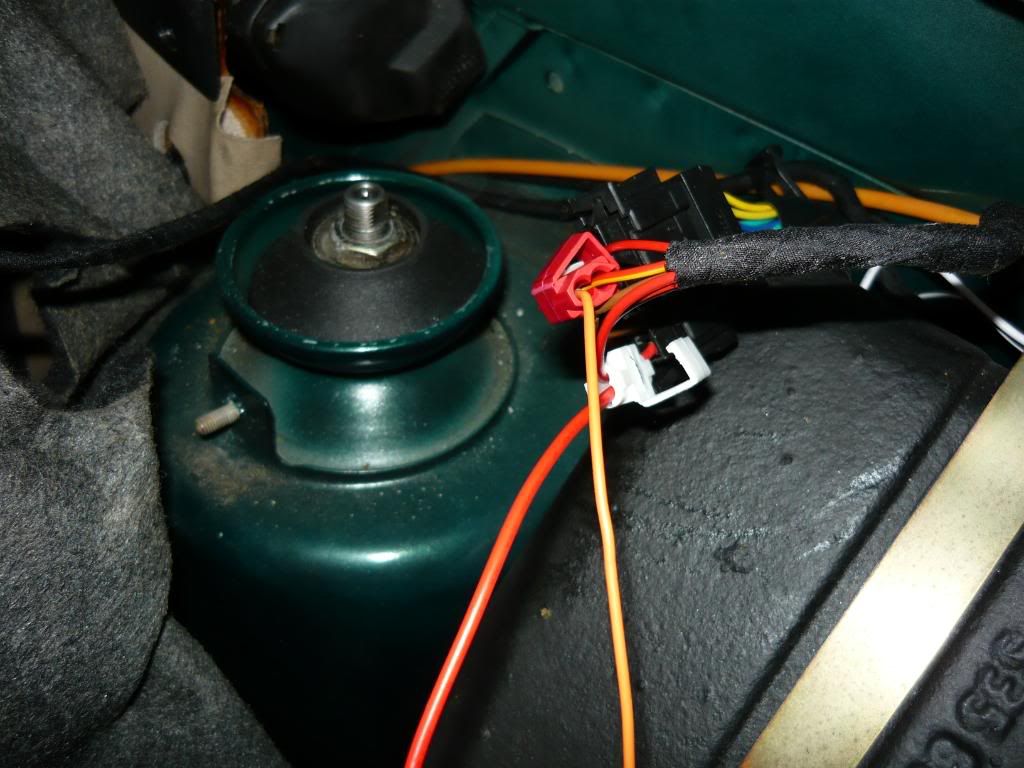

First you must tap into the lock wire. This is the Red/Yellow wire at the factory harness used for the Central lock pump. I extended this wire to be able to reach the relay. This is plugged into pin #87 on the relay to simulate grounding out of the lock wire as if you were holding the key in the handle.
Then the Red wire is taped into for Constant Power. Using this new power wire make a connection with a jumper to jump 2 pins on the relay.
Relay Pin #'s 30 and 85 are connected to the Hot.




I USED THE UNIVERSAL HARNESS FOR PARTS HERE. YOUR WIRE COLORS MAY VARY

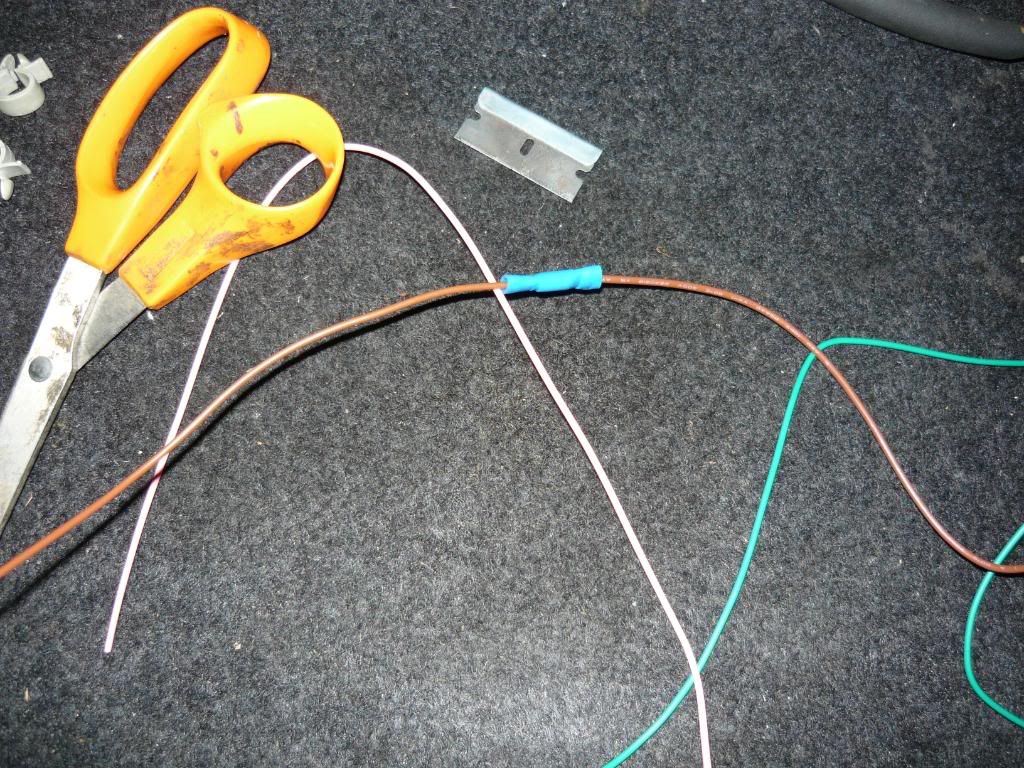

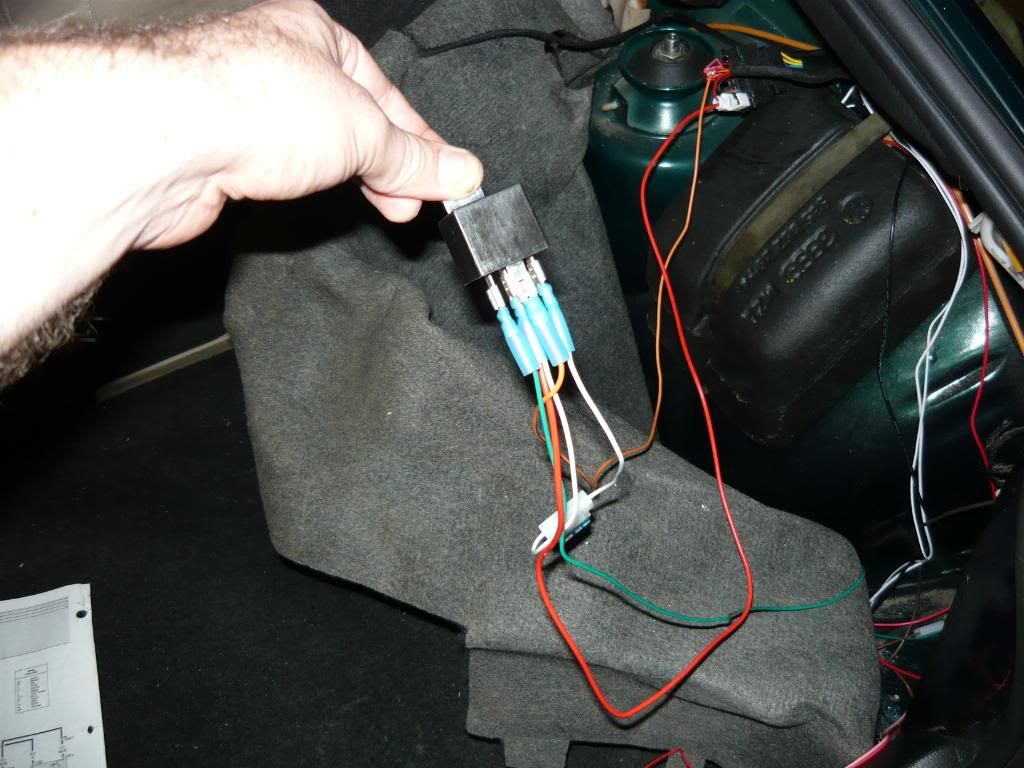

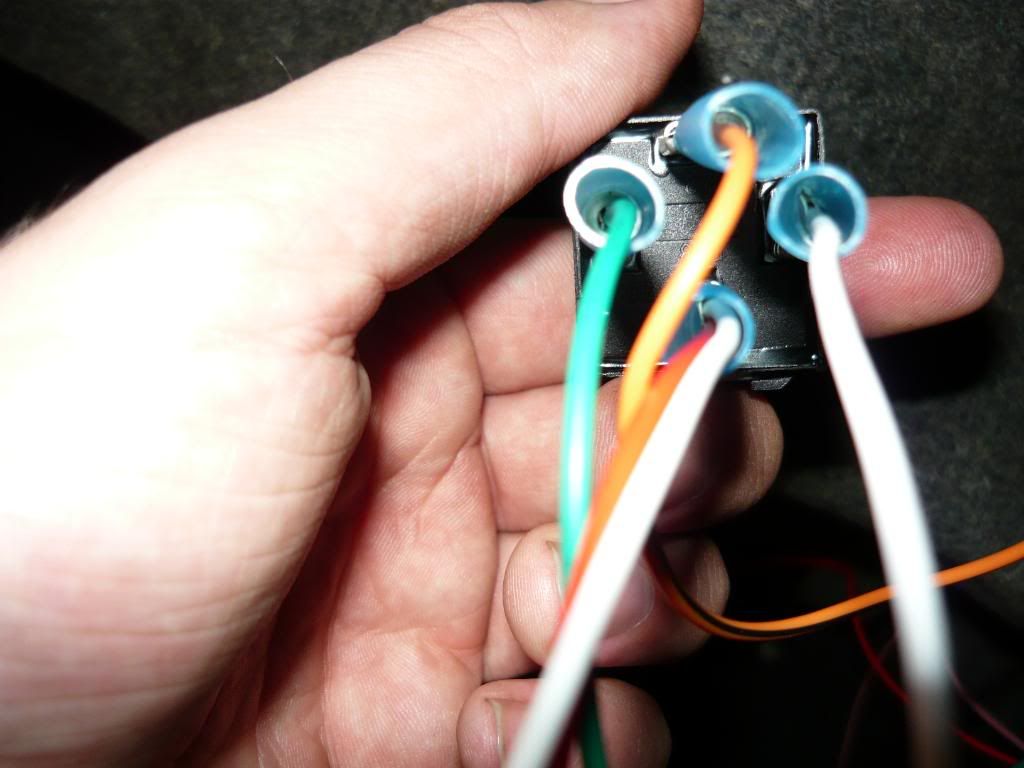

The red wire is coming from power,the orange is from the lock wire, green in signal source from the control unit, and white is the jumped connection.



This leaves pin# 86 to be connected to the green wire from the control unit.

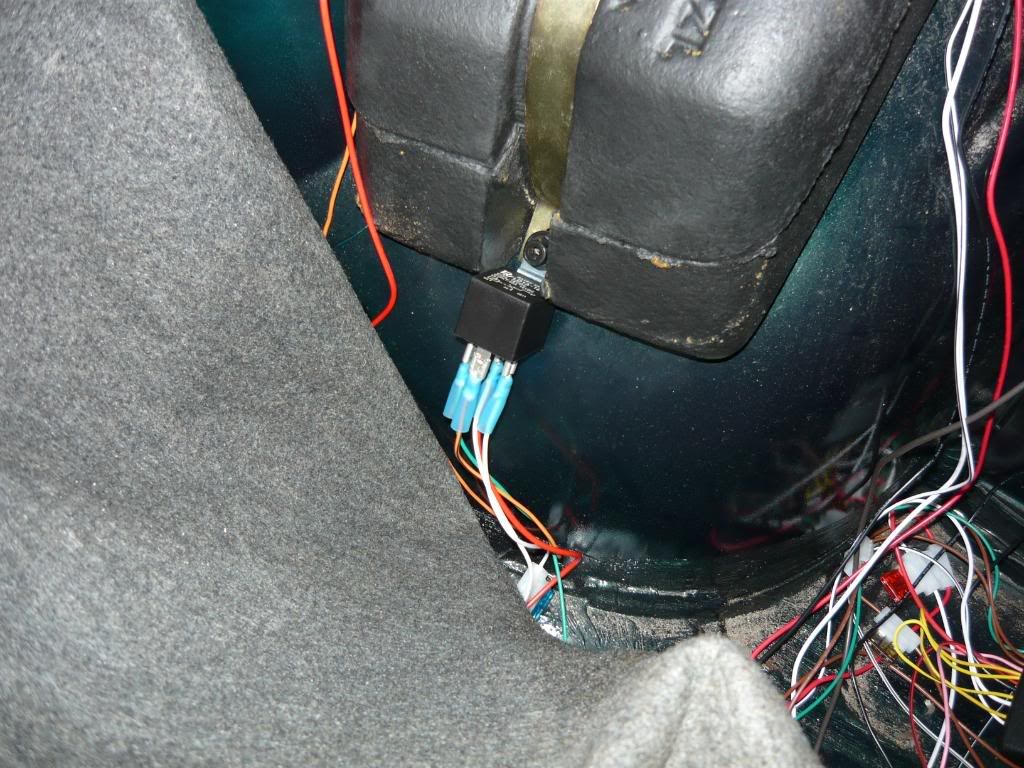

I then located the relay on the puump cover strap and reassemled the car.


Your windows and roof should all close with one touch of the remote.
http://www.youtube.com/watch?v=Vwpp5EEkIbw
Thanks again to those answering my wiring information requests!!!!!
I will update this if i move forward with adding trunk pop to the car, and lastly wiring the horn beep at lock. One thing I am greatful for not having as that used to get me so busted in my MK3. lol
