Hey all, I'm reassembling my motor and have a question about the Oil Non-Return Valve PN: 022103175
The part itself fits into the cylinder deck hole and sits there with an O ring, inside of the valve there are threads, I cannot remember when I disassembled it if there was something inside those threads,
Should there be something inside this threaded valve with outer o-ring?

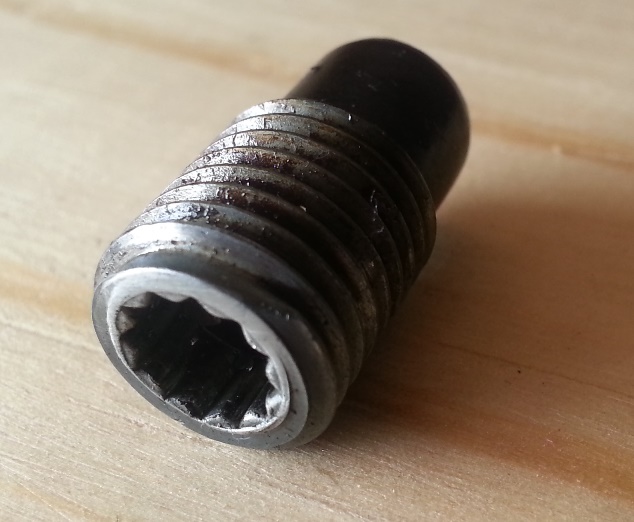

When I go on ECS I can find the similar 12-pt screw part, but it states it doesn't fit the MKIV R32
taken from a different VR6 (not 3.2 24v) thread
The Bentley Manual states to torque it to 5 Nm (44in-lb):
#13:
Any information is much appreciated!
I believe my engine code is BJS
The part itself fits into the cylinder deck hole and sits there with an O ring, inside of the valve there are threads, I cannot remember when I disassembled it if there was something inside those threads,
Should there be something inside this threaded valve with outer o-ring?


When I go on ECS I can find the similar 12-pt screw part, but it states it doesn't fit the MKIV R32
taken from a different VR6 (not 3.2 24v) thread


The Bentley Manual states to torque it to 5 Nm (44in-lb):

#13:

Any information is much appreciated!
I believe my engine code is BJS
